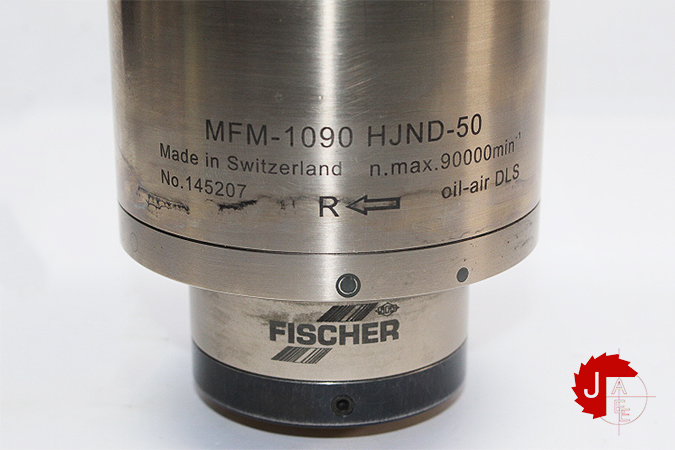

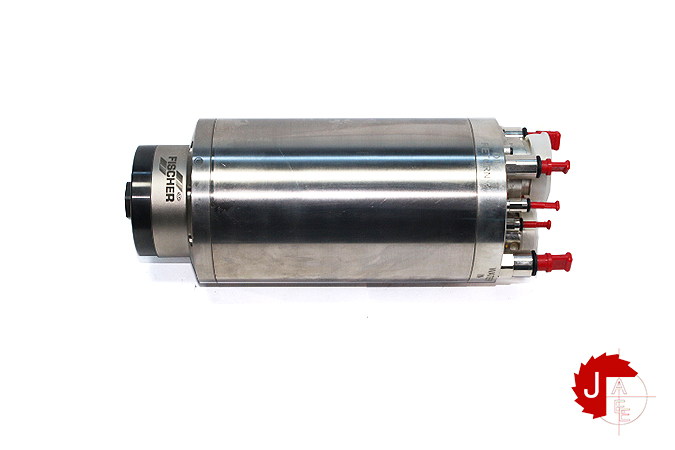

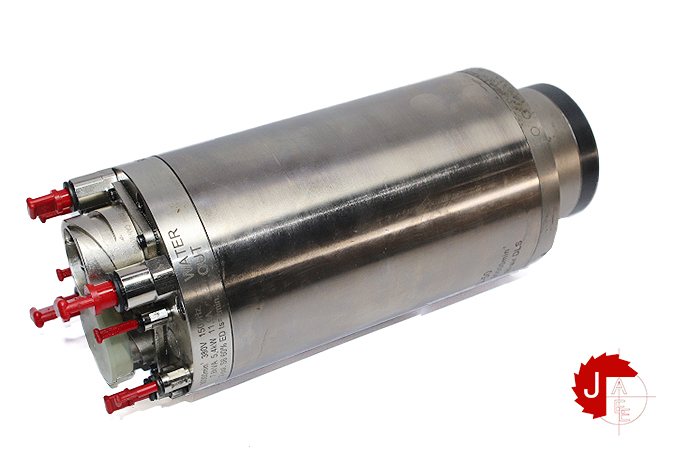

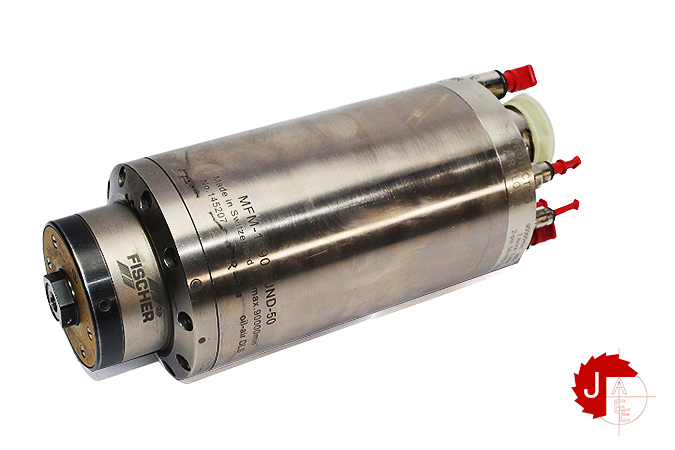

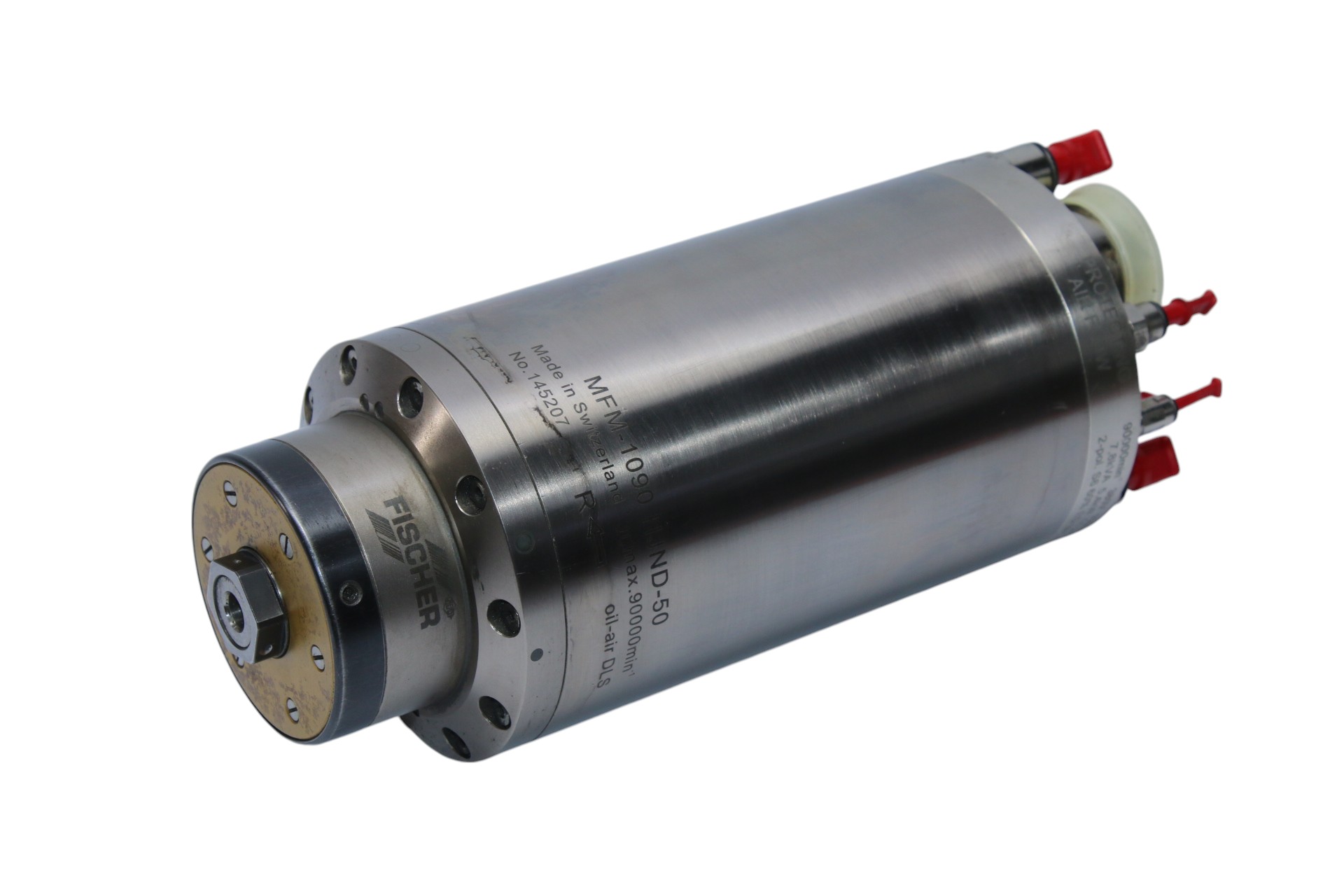

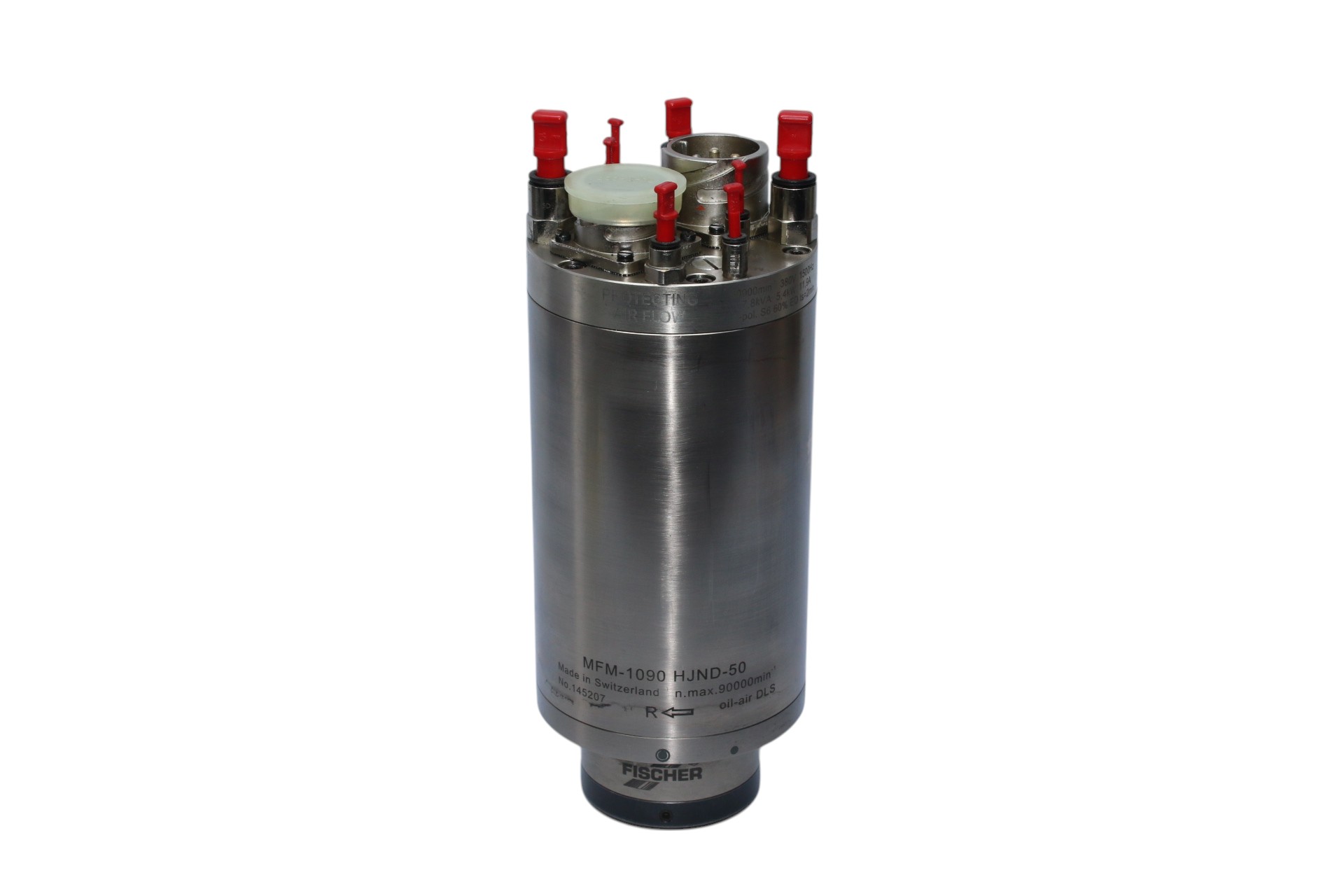

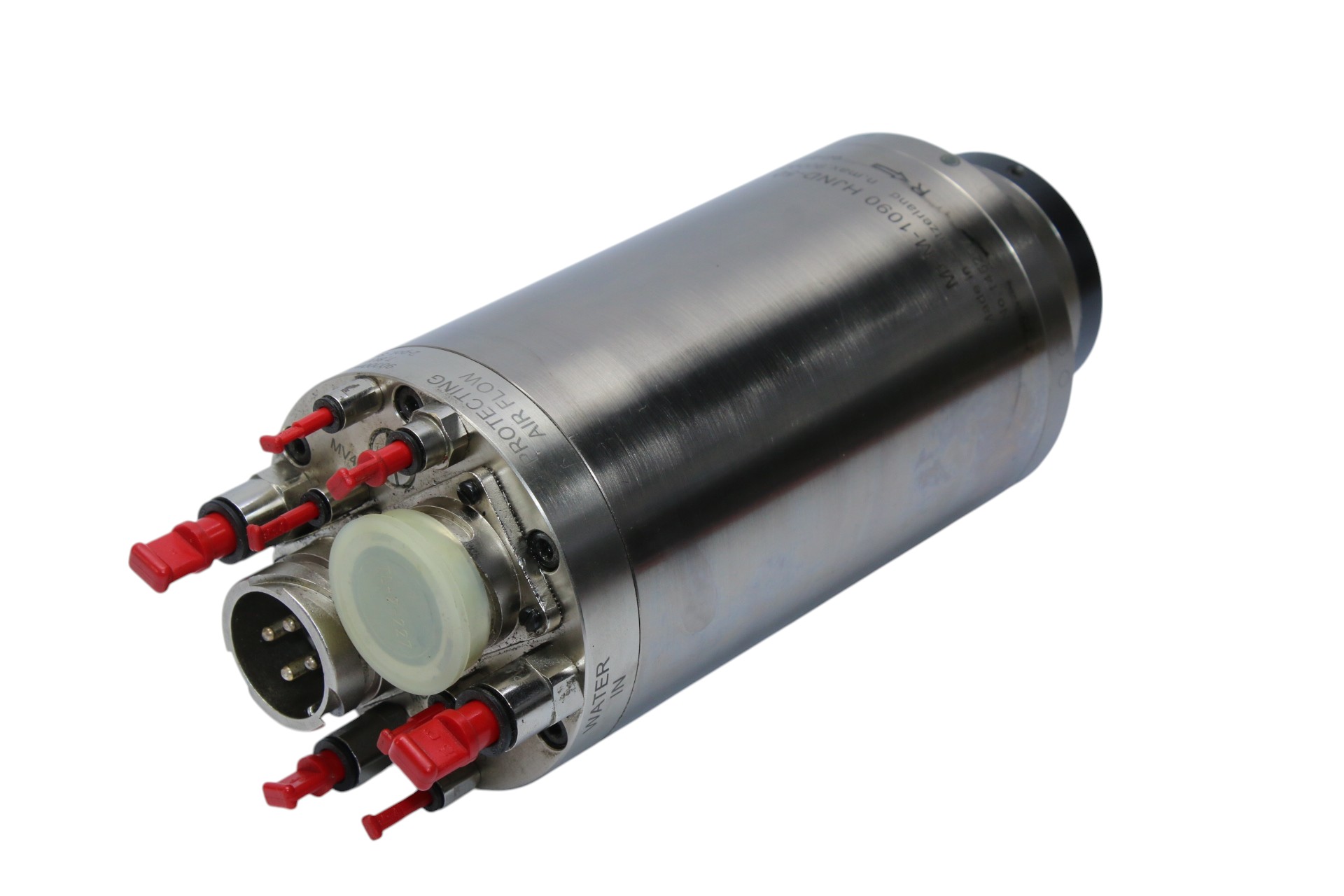

FISCHER MFM-1090 HJND-50 SPINDLE MOTOR

FISCHER

Manufacturer: FISCHER

Type: Servo Motor

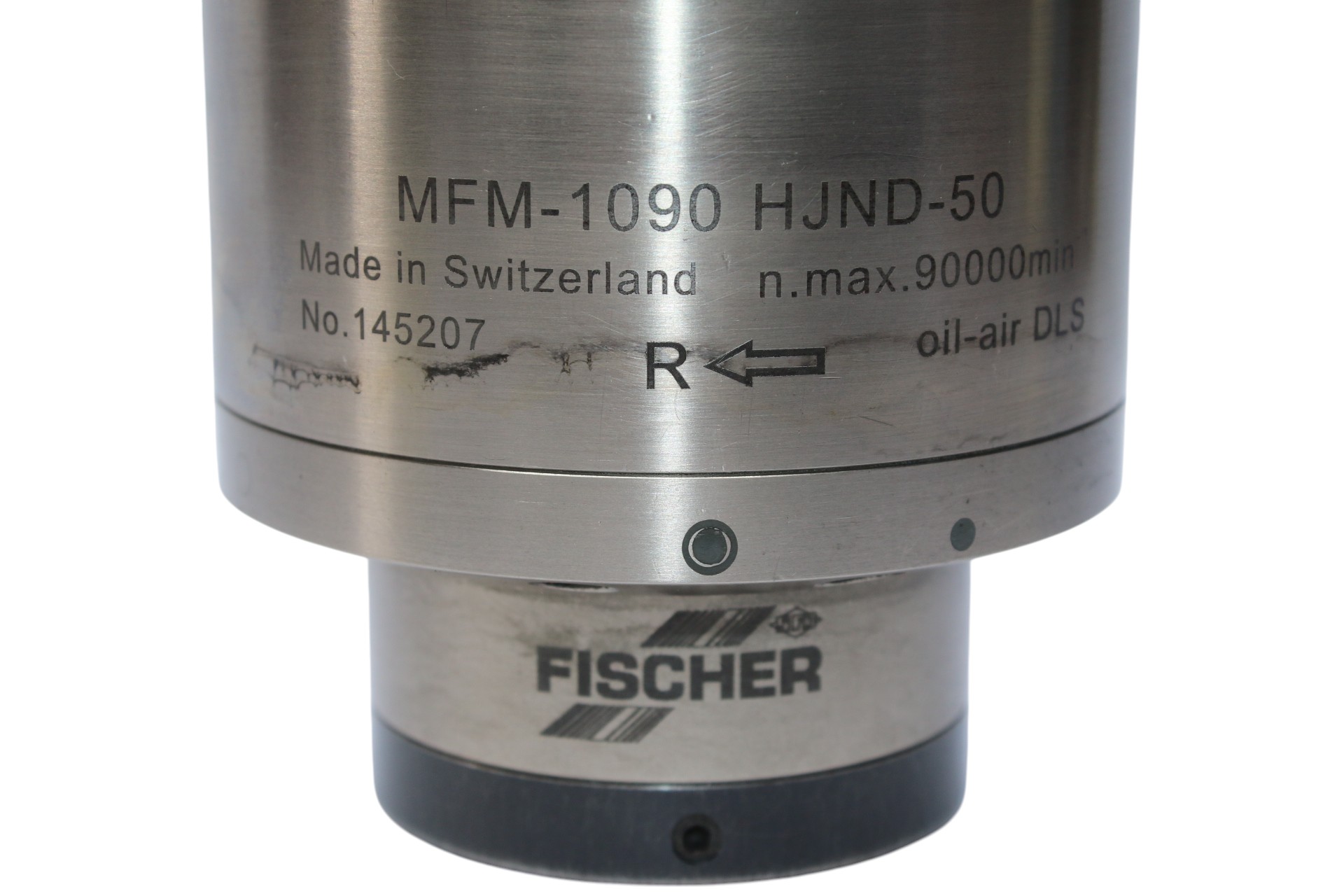

Model: MFM-1090 HJND-50

Code: 145207

Housing diameter (mm) : 100
Length (mm) : 222

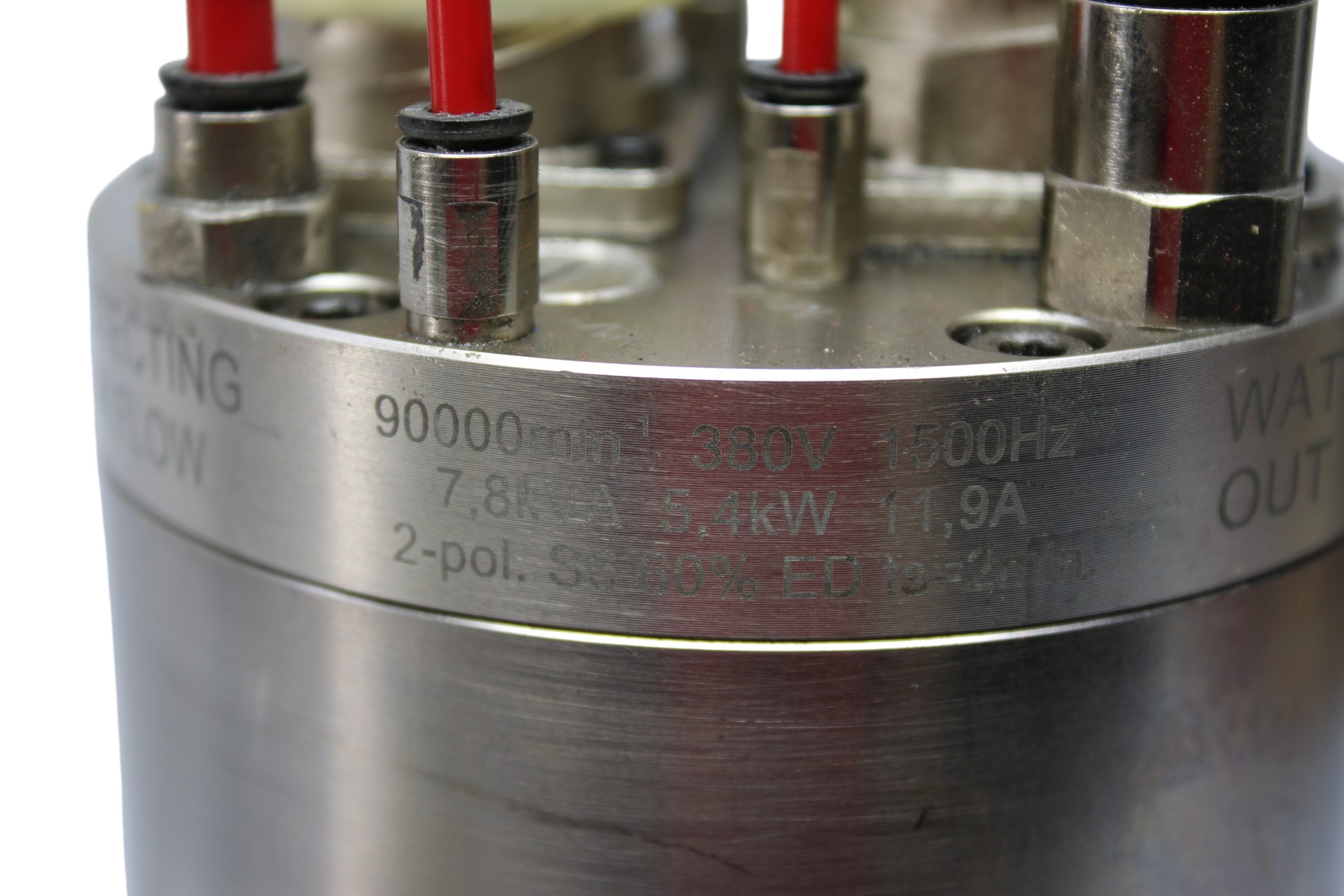

max. speed (rpm) : 90,000
Weight (kg) : 8.5

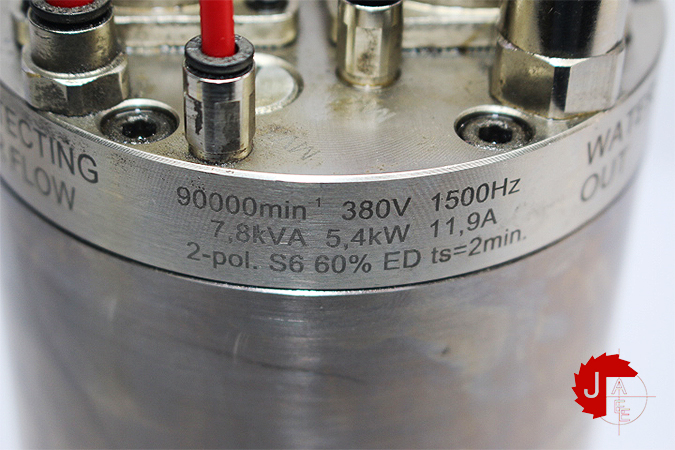

Motor frequency max. (Hz) : 1,500
Power S1 (KW) : 4.2
Power S6 60% (KW) : 5.4
Torque S1 (Nm) : 0.47
Torque S6 60% (Nm) : 0.62

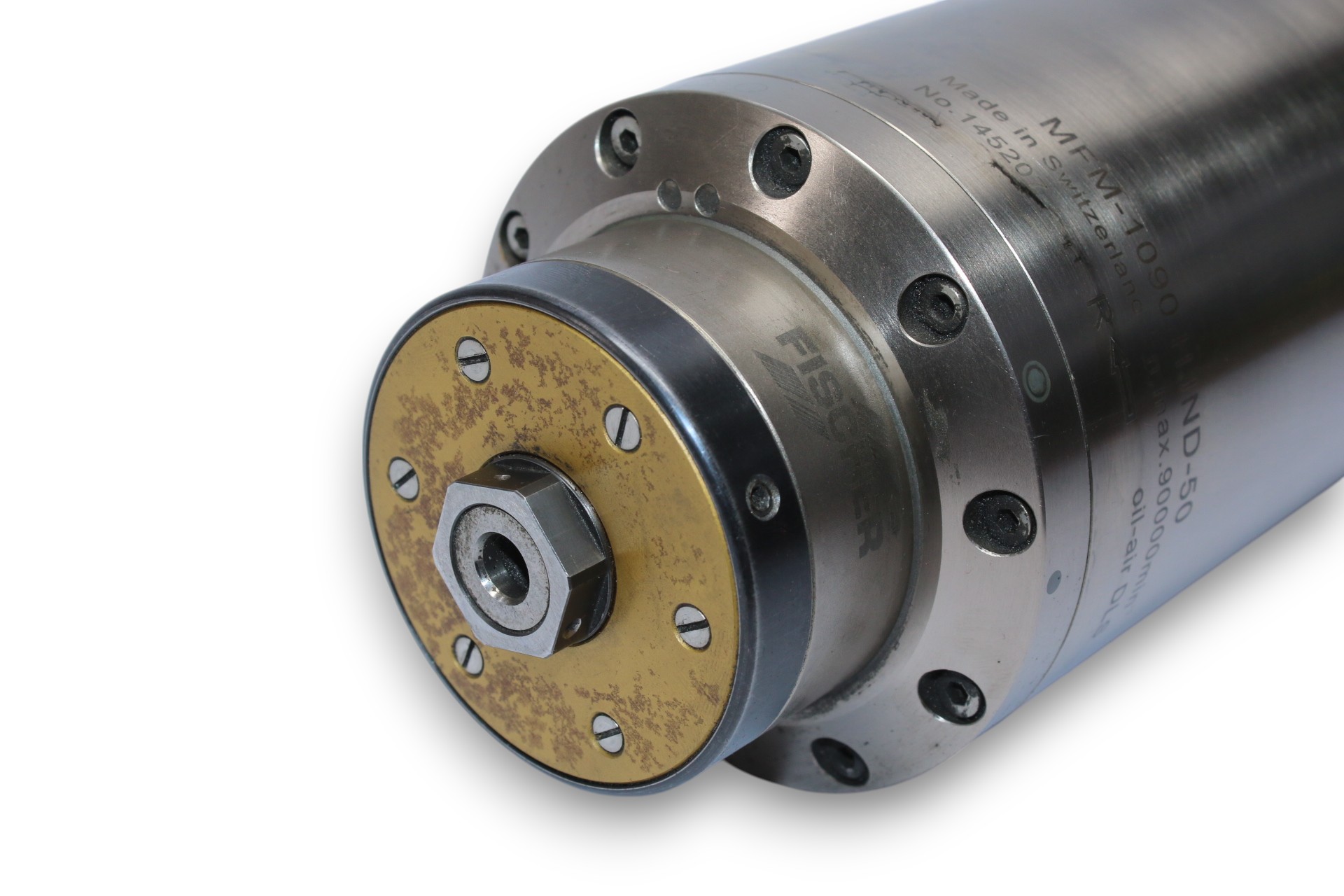

Tool interface : HJND-50
Speedlimits internal grinding arbors : Download
Grenzdrehzahl_Futter : Download
static rigidity axial [N/µm] : 50
static rigidity radial [N/µm] : 35
Lubrication : Oil-air

Options
Coolant trough unit
S1-sensor for single-point orientation
220V or 380 V
