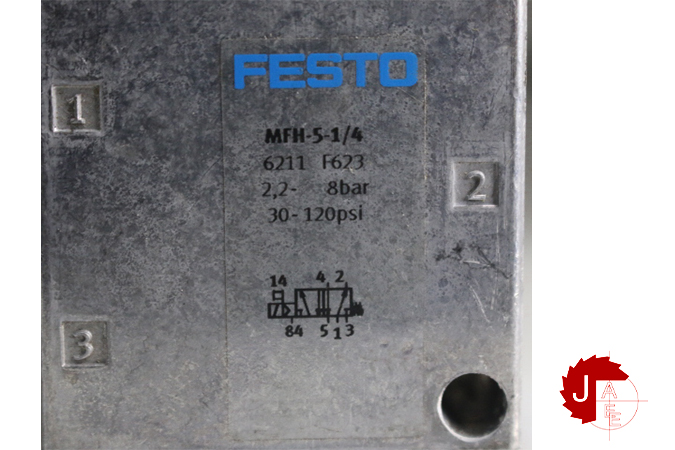

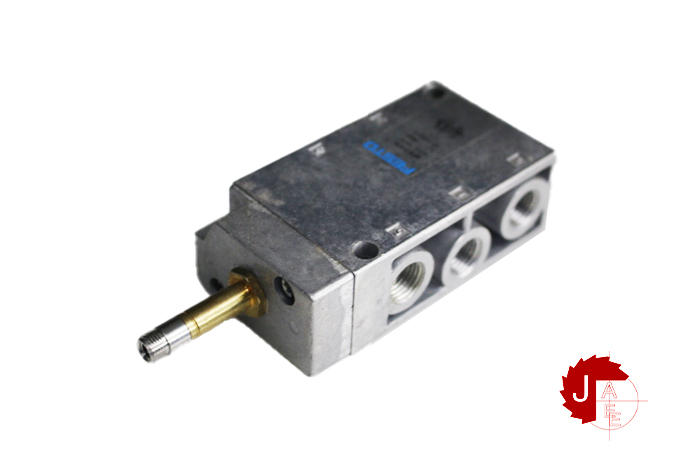

FESTO MFH-5-1/4 6211 Air solenoid valve

SKU: 0995696 Category: Tags: ,

Only 4 items left.

  • Valve function5/2, monostable
  • Actuation typeElectrical
  • Width30.5 mm
  • Standard nominal flow rate1000 l/min
  • Pneumatic working portG1/4
  • Operating voltageVia solenoid coil, to be ordered separately
  • Operating pressure0.22 MPa … 0.8 MPa
  • Operating pressure2.2 bar … 8 bar
  • Structural designPlate seat
  • Reset methodMechanical spring
  • Certificationc UL us – Recognized (OL)
  • Degree of protectionIP65
  • Nominal width7 mm
  • Width dimension32 mm
  • Exhaust air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionAny
  • Manual overrideDetenting
  • Type of controlPilot-controlled
  • Flow directionNon-reversible
  • Symbol00991035
  • LapUnderlap
  • b-value0.19
  • C value4.49 l/sbar
  • Switching time off29 ms
  • On switching time9 ms
  • Max. positive test pulse with 0 signal2200 µs
  • Max. negative test pulse on 1 signal3700 µs
  • Coil characteristicsSee solenoid coil, to be ordered separately
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)1 – Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-20 °C … 60 °C
  • Temperature of medium-10 °C … 60 °C
  • Ambient temperature-5 °C … 40 °C
  • Product weight290 g
  • Electrical connectionVia F coil, to be ordered separately
  • Type of mountingOptionally: On terminal strip With through-hole
  • Pilot exhaust air port 84M5
  • Pneumatic connection 1G1/4
  • Pneumatic connection 2
  • Pneumatic connection 3G1/4
  • Pneumatic connection 4G1/4
  • Pneumatic connection 5G1/4
  • Note on materialsRoHS-compliant
  • Seals materialNBR
  • Housing materialDie-cast aluminum
Manufacturer FESTO
Model MFH-5-1/4 6211 Air solenoid valve
Condition New
