- Actuator lockRotary knob with detent
- Mounting positionAny
- Structural designPilot-controlled precision diaphragm regulator
- Controller functionOutlet pressure constant With secondary exhausting
- Symbol00991540
- Pressure gaugeG1/8 prepared
- Operating pressure0.1 MPa … 1.2 MPa
- Operating pressure1 bar … 12 bar
- Pressure regulation range0.1 bar … 10 bar
- Max. pressure hysteresis0.02 bar
- Standard nominal flow rate2300 l/min
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot mediaOperation with oil lubrication not possible
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Temperature of medium-10 °C … 60 °C
- Ambient temperature-10 °C … 60 °C
- Product weight310 g
- Type of mountingFront panel mounting Line installation With accessories
- Pneumatic connection 1G1/4
- Pneumatic connection 2G¼
- Note on materialsRoHS-compliant
- Seals materialNBR
- Housing materialAluminum
| Manufacturer | FESTO |
|---|---|

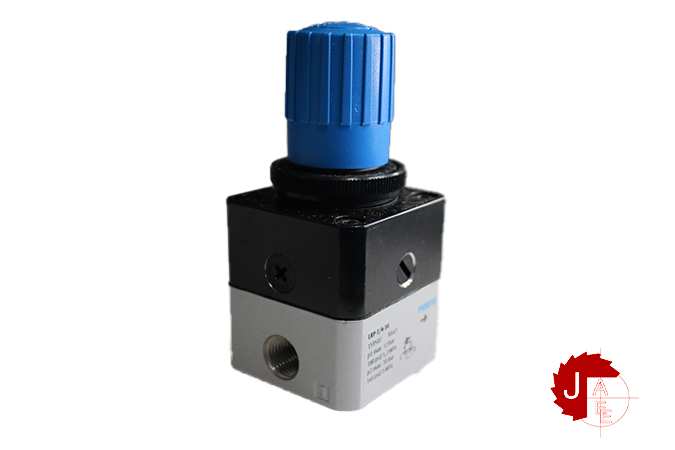

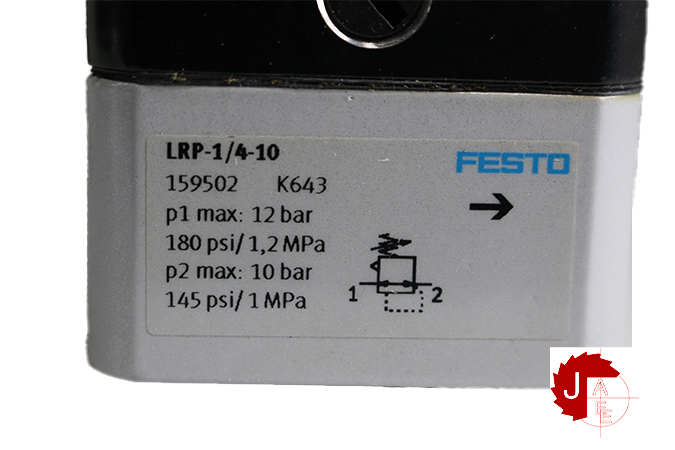

| Model | LRP-1/4-10 159502 Precision pressure regulator |
| Condition | New |
