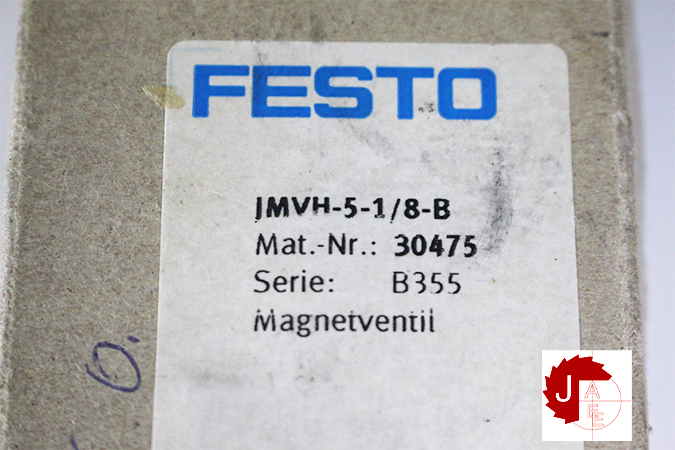

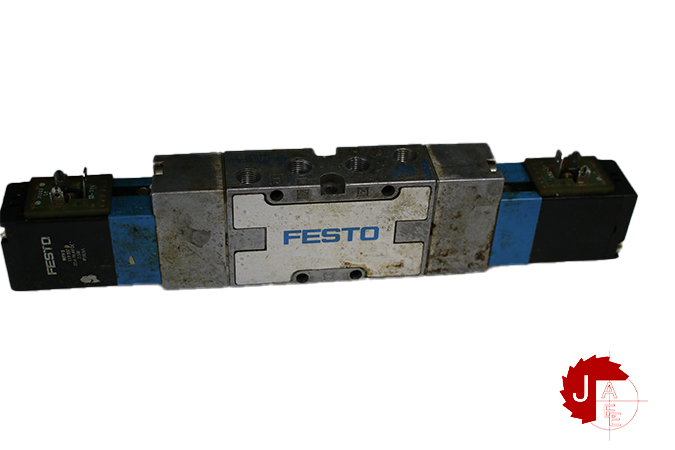

- Valve function5/2, bistable
- Actuation typeElectrical
- Width26 mm
- Standard nominal flow rate1000 l/min
- Pneumatic working portG1/8
- Operating voltage24V DC
- Operating pressure0.2 MPa … 1 MPa
- Operating pressure2 bar … 10 bar
- Structural designPiston gate valve
- Nominal width8 mm
- Sealing principleSoft
- Mounting positionAny
- Manual overrideNon-detenting
- Type of controlPilot-controlled
- Pilot air supply portInternal
- Flow directionNon-reversible
- Symbol00991013
- LapOverlap
- Max. switching frequency3 Hz
- Changeover time18 ms
- Max. positive test pulse with 0 signal2200 µs
- Max. negative test pulse on 1 signal3700 µs
- Coil characteristics24 V DC: 2.5 W
- Permissible voltage fluctuations+/- 10 %
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)1 – Low corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Storage temperature-40 °C … 60 °C
- Temperature of medium-5 °C … 50 °C
- Ambient temperature-5 °C … 50 °C
- Product weight560 g
- Type of mountingOptionally: On PR rail With through-hole
- Pilot exhaust air port 82M5
- Pilot exhaust air port 84M5
- Pneumatic connection 1G1/8
- Pneumatic connection 2G1/8
- Pneumatic connection 3G1/8
- Pneumatic connection 4G1/8
- Pneumatic connection 5G1/8
- Note on materialsRoHS-compliant
- Seals materialNBR
- Housing materialDie-cast aluminum
Your orders will be shipped within the next 24 hours.
