- Mounting positionAny
- Structural designBranching module
- Symbol00991510
- Operating pressure0 bar … 16 bar
- Standard nominal flow rate in main flow direction 1 -> 23300 l/min
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-] Inert gas
- Corrosion resistance class (CRC)2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Storage temperature-10 °C … 60 °C
- Air quality class at the outputCompressed air as per ISO 8573-1:2010 [7:-:-] Inert gas
- Temperature of medium-10 °C … 60 °C
- Ambient temperature-10 °C … 60 °C
- Product weight197 g
- Pneumatic connection 1G1/4
- Pneumatic connection 2G¼
- Pneumatic connection 3G1/4
- Pneumatic connection 4G1/4
- Note on materialsRoHS-compliant
- Housing materialDie-cast zinc
| Manufacturer | FESTO |
|---|---|

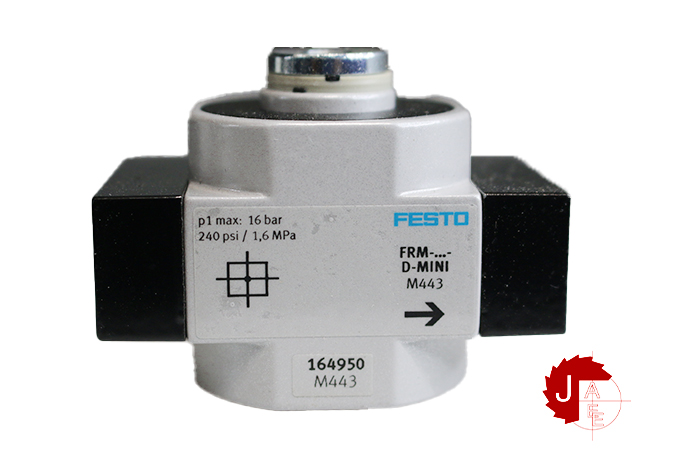

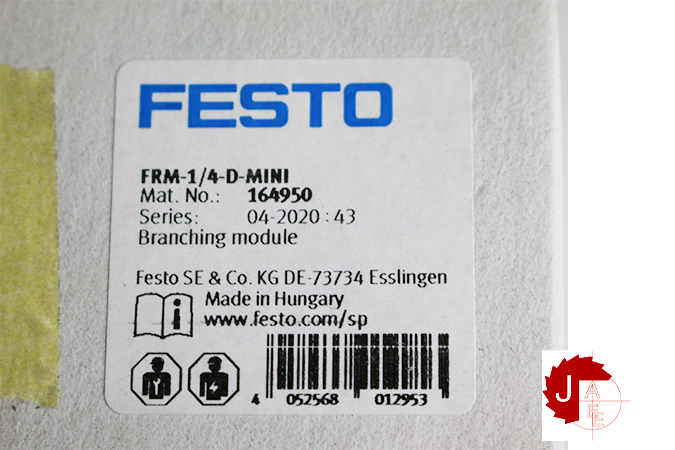

| Model | FRM-1/4-D-MINI 164950 Branching module |
| Condition | New |
