Pneumatic Cylinders and Actuators

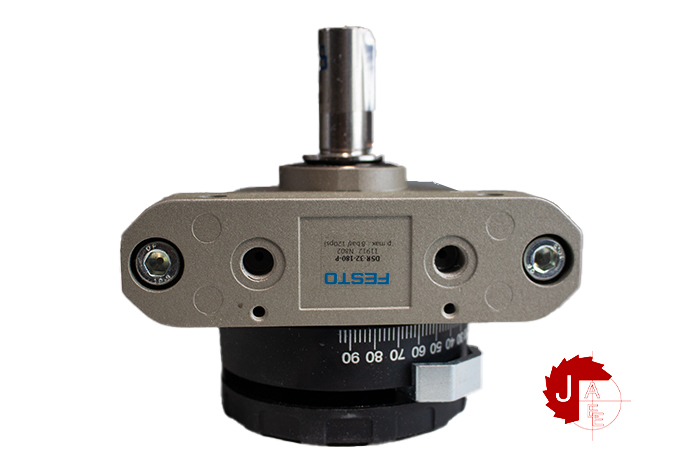

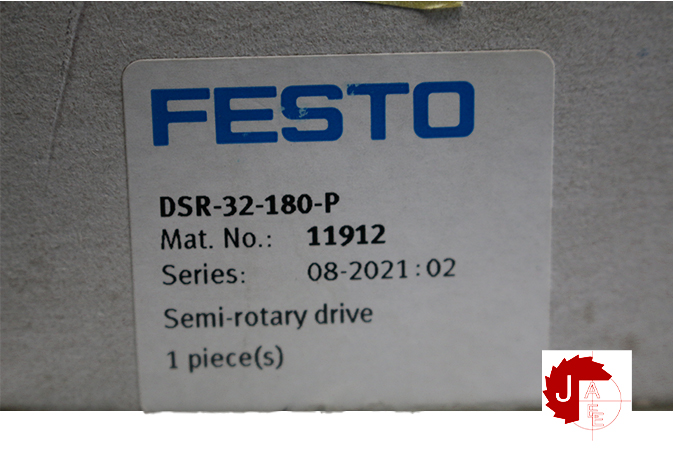

FESTO DSR-32-180-P 11912 Quarter turn actuator

SKU: 0995644 Category: Pneumatic Cylinders and Actuators Tags: Festo, festo DSR, FESTO Quarter turn actuator There are no items available at this time.

Size32
Cushioning angle1.2 deg
Adjustment range of swivel angle0 deg … 180 deg
Swivel angle0 deg … 180 deg
CushioningElastic cushioning rings/pads at both ends
Mounting positionAny
Mode of operationDouble-acting
Structural designRotary vane
Position sensingNone
Symbol00991265
Operating pressure1.5 bar … 8 bar
Max. swivel frequency at 6 bar3 Hz
Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-10 °C … 60 °C
Theoretical torque at 6 bar10 Nm
Product weight1300 g
Type of mountingWith through-hole
Pneumatic connectionG1/8
Drive shaft materialSteel Nickel-plated
Seals materialNBR

Manufacturer	FESTO
Model	DSR-32-180-P 11912 Quarter turn actuator
Condition	New
