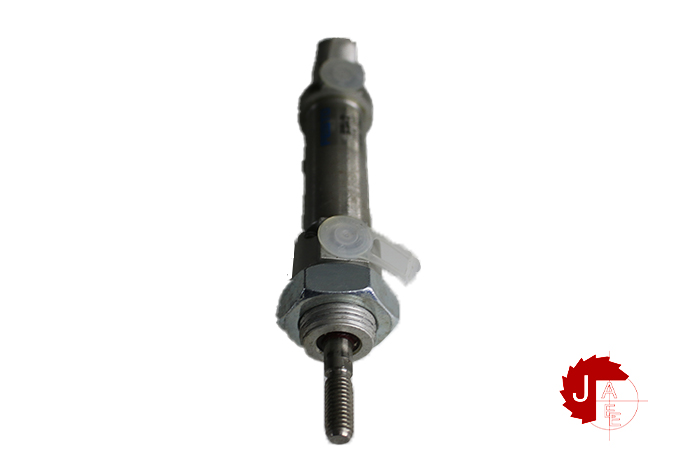

FESTO DSNU-20-125-PPV-A 19240 ISO cylinder

SKU: 0995763 Category: Tags: ,

Only 2 items left.

  • Stroke125 mm
  • Piston diameter20 mm
  • Piston rod threadM8
  • CushioningPneumatic cushioning, adjustable at both ends
  • Mounting positionAny
  • Conforms to standardCETOP RP 52 P ISO 6432
  • Piston rod endExternal thread
  • Structural designPiston Piston rod Cylinder barrel
  • Position sensingFor proximity sensor
  • Symbol00991235
  • VariantsPiston rod at one end
  • Operating pressure0.1 MPa … 1 MPa
  • Operating pressure1 bar … 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)2 – Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom classClass 6 according to ISO 14644-1
  • Ambient temperature-20 °C … 80 °C
  • Impact energy in the end positions0.2 J
  • Cushioning length15 mm
  • Theoretical force at 6 bar, retracting158.3 N
  • Theoretical force at 6 bar, advancing188.5 N
  • Moving mass at 0 mm stroke44 g
  • Additional moving mass per 10 mm stroke4 g
  • Basic weight with 0 mm stroke186.8 g
  • Additional weight per 10 mm stroke7.2 g
  • Type of mountingWith accessories
  • Pneumatic connectionG1/8
  • Note on materialsRoHS-compliant
  • Cover materialWrought aluminum alloy Plain anodized
  • Seals materialNBR TPE-U(PU)
  • Piston rod materialHigh-alloy stainless steel
  • Material of cylinder barrelHigh-alloy stainless steel
Manufacturer FESTO
Model DSNU-20-125-PPV-A 19240 ISO cylinder
Condition New
