- Stroke 145 mm
- Piston diameter16 mm
- Piston rod threadM6
- Based on normISO 6432
- CushioningElastic cushioning rings/pads at both ends Self-adjusting pneumatic end-position cushioning
- Mounting positionAny
- Piston rod endExternal thread
- Structural designPiston Piston rod Cylinder barrel
- Position sensingFor proximity sensor
- VariantsHard scraper For unlubricated operation Increased chemical resistance Extended external thread piston rod Extended piston rod Bearing cover without mounting thread Lateral supply port Through piston rod Heat-resistant seals max. 120°C Temperature range -40 to 80°C Piston rod at one end
- Operating pressure0.1 MPa … 1 MPa
- Operating pressure1 bar … 10 bar
- Mode of operationDouble-acting
- CE marking (see declaration of conformity)as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)acc. to UK EX instructions
- Explosion prevention and protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
- ATEX category gasII 2G
- ATEX category for dustII 2D
- Type of ignition protection for gasEx h IIC T4 Gb
- Type of (ignition) protection for dustEx h IIIC T120°C Db
- Explosive ambient temperature-20°C <= Ta <= +60°C
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)3 – High corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- For use in the food industrySee supplementary material information
- Ambient temperature-40 °C … 120 °C
- Theoretical force at 6 bar, retracting104 N
- Theoretical force at 6 bar, advancing121 N
- Moving mass at 0 mm stroke21 g
- Additional moving mass per 10 mm stroke2 g
- Basic weight with 0 mm stroke130 g
- Additional weight per 10 mm stroke5 g
- Type of mountingWith accessories
- Pneumatic connectionM5
- Note on materialsRoHS-compliant
- Cover materialHigh-alloy stainless steel
- Piston rod materialHigh-alloy stainless steel
- Material of cylinder barrelHigh-alloy stainless steel
| Manufacturer | FESTO |
|---|---|

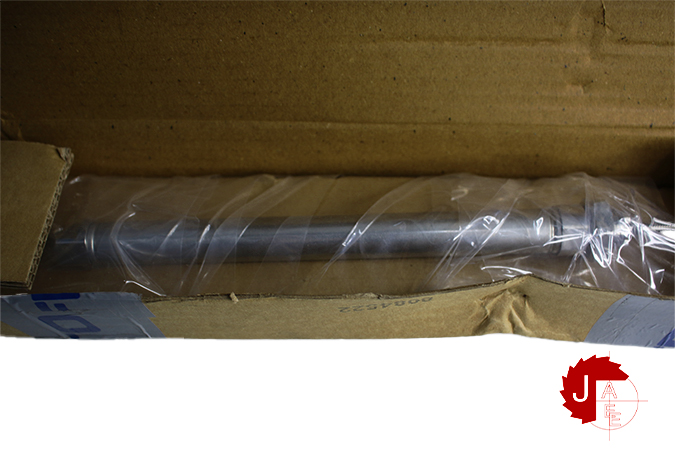

| Model | CRDSNU-16-16-145-P-A 55278 ISO cylinder |
| Condition | New |
