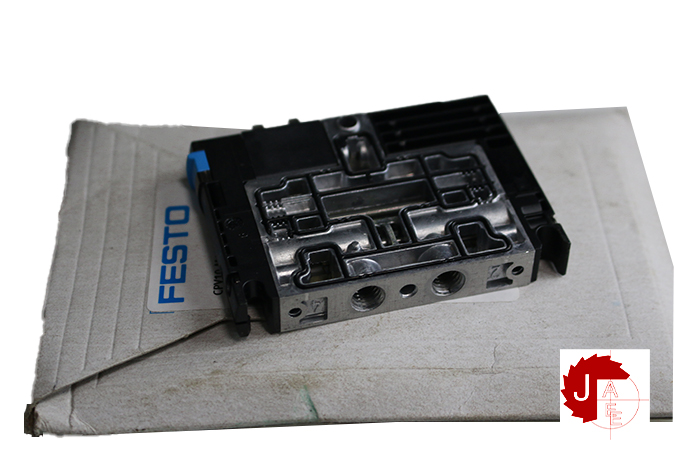

FESTO CPV10-M1H-5LS-M7 161414 Air solenoid valve

SKU: 0995626 Category: Tags: , ,

Only 1 item left.

  • Valve function5/2, monostable
  • Actuation typeElectrical
  • Valve size10 mm
  • Standard nominal flow rate400 l/min
  • Pneumatic working portM7
  • Operating voltage24V DC
  • Operating pressure-0.09 MPa … 1 MPa
  • Operating pressure-0.9 bar … 10 bar
  • Structural designPiston gate valve
  • Reset methodPneumatic spring
  • Degree of protectionIP65
  • Nominal width4 mm
  • Exhaust air functionWithout flow control option
  • Sealing principleSoft
  • Mounting positionAny
  • Manual overrideDetenting Non-detenting
  • Type of controlPilot-controlled
  • Pilot air supply portExternal Internal
  • Flow directionNon-reversible
  • Symbol00991027
  • LapOverlap
  • Pilot pressure MPa0.3 MPa … 0.8 MPa
  • Pilot pressure3 bar … 8 bar
  • b-value0.4
  • C value1.6 l/sbar
  • Switching time off27 ms
  • On switching time17 ms
  • Duty cycle100% in combination with holding current reduction
  • Electrical power consumption0.46 W
Manufacturer FESTO
Model CPV10-M1H-5LS-M7 Air solenoid valve
Condition New
