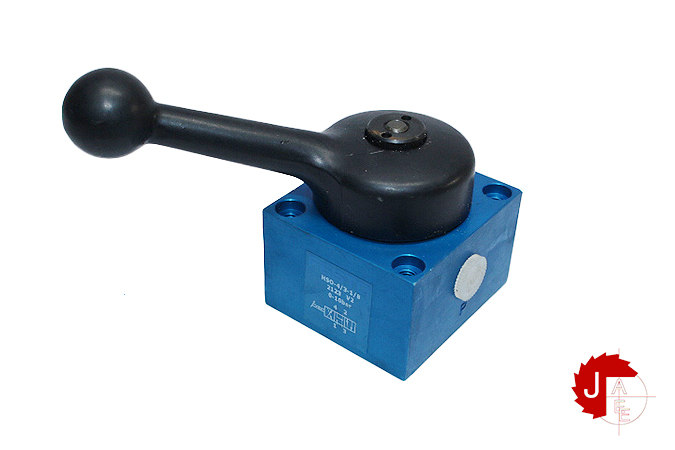

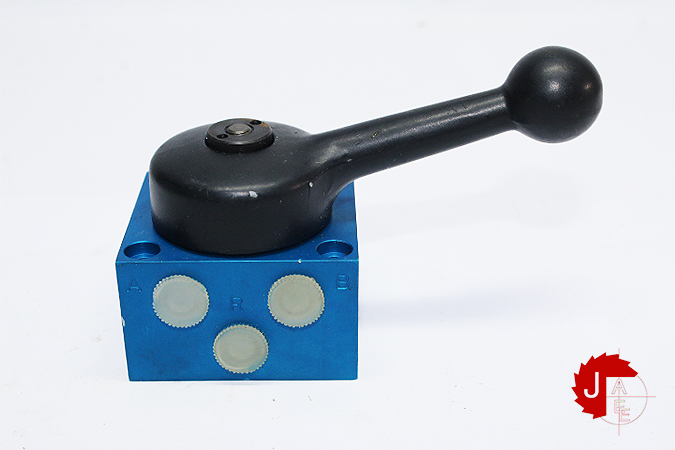

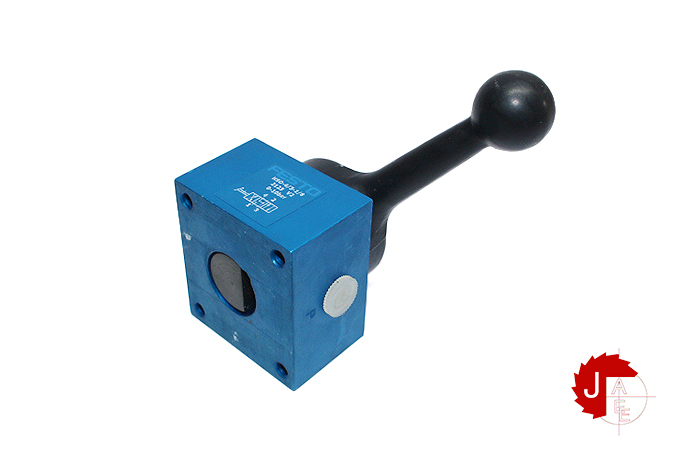

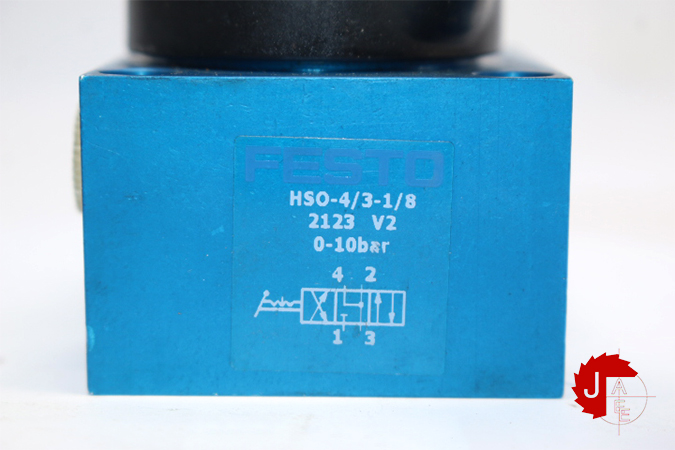

FESTO HSO-4/3-1/8 Hand lever valve

FESTO HSO-4/3-1/8 Hand lever valve

Manufacturer: FESTO
Type: Hand lever valve
Model: HSO-4/3-1/8

Standard nominal flow rate 700 l/min
Pneumatic connection, port 2 G1/8
Pneumatic connection, port 4 G1/8
Operating pressure -0.95 … 10 bar
Design structure Rotary slide valve
Nominal size 6 mm
Medium temperature -20 … 60 °C
Ambient temperature -20 … 60 °C
Actuation torque 1 Nm
Product weight 120 g
Mounting type with through hole
Pneumatic connection, port 1 G1/8
Pneumatic connection, port 3 G1/8
Materials information for seals NBR
Materials information, housing Plastic
