Manufacturer: FESTO
Type: Linear Actuator
Model: DGPL-125-100-PPV-A-KF-B
Part No: 161792
Stroke 50 mm
Piston diameter 16 mm
Operating mode of drive unit Yoke
Cushioning YSRW: Shock absorber, soft characteristic curve
Assembly position Any
Guide Recirculating ball bearing guide
Design: structure Guide ,Yoke kinematics ,Piston rod
Max. number of intermediate positions : 1
Position detection For proximity sensor
Variants clamping unit on piston rod
Pulling
Operating pressure 4 … 8 bar
Cushioning length 10 mm
Theoretical force at 6 bar, return stroke 121 N
Theoretical force at 6 bar, advance stroke 104 N
| Manufacturer | FESTO |
|---|---|

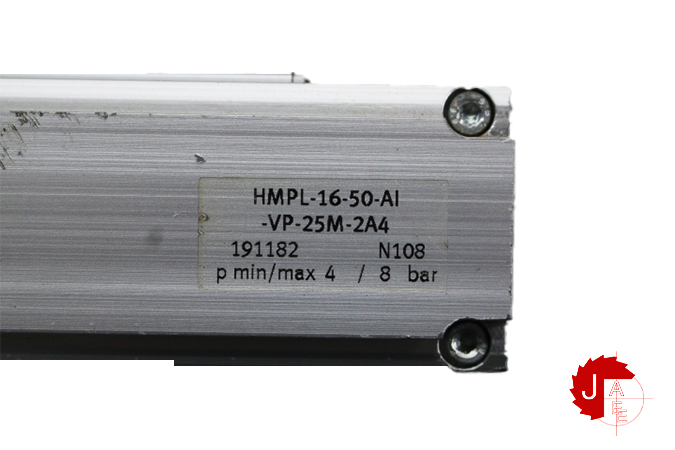

| Model | HMPL-16-50-AL-VP-25M-2A4 Linear module 191182 |
| Condition | Used |
