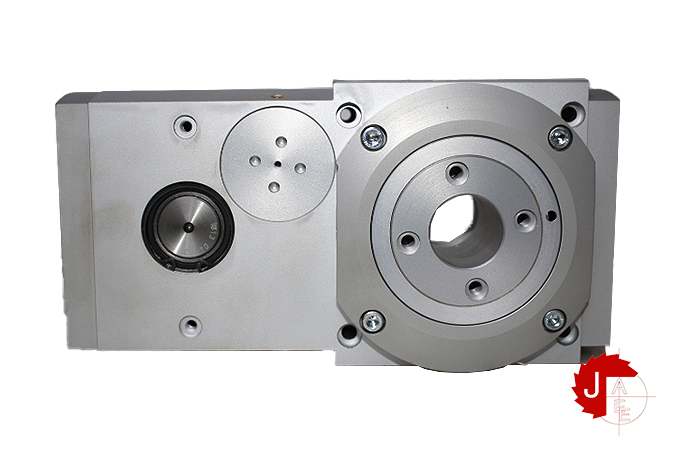

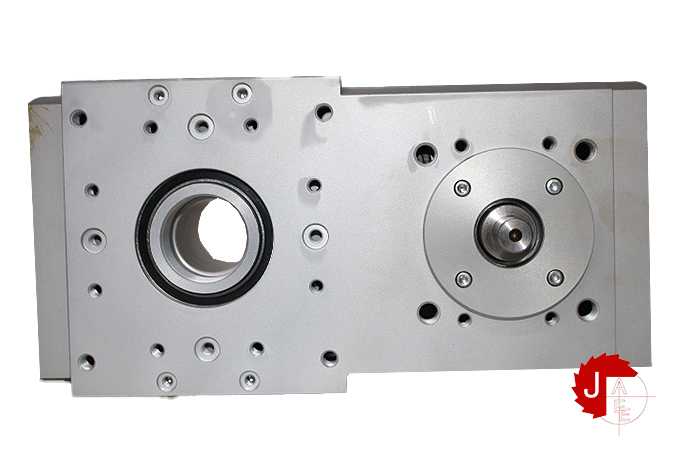

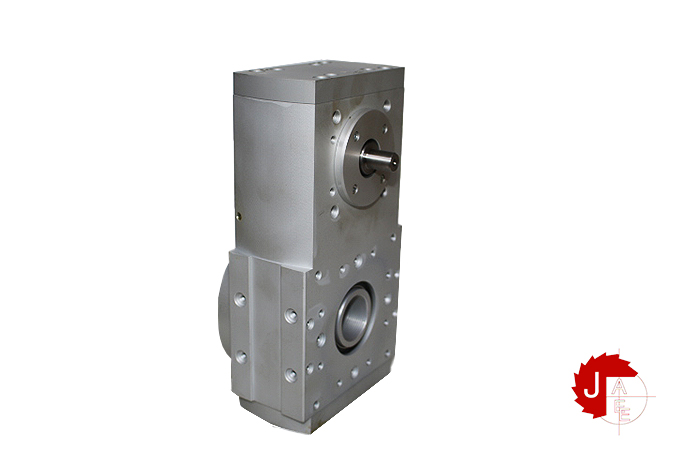

FESTO ERMB-32 Rotary module 552708

FESTO ERMB-32 Rotary module 552708

Manufacturer: FESTO
Type: Rotary module

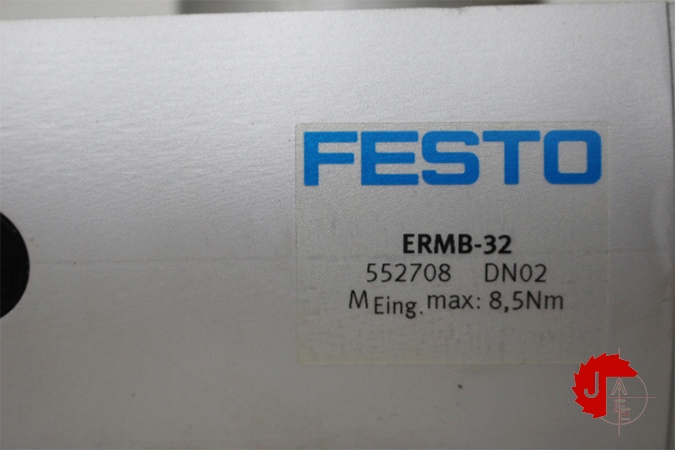

Model: ERMB-32
Part No: 552708

Size 32
Structural design Electromechanical rotary module with toothed belt
Mounting position Any
Rotation angle Infinite Gear ratio 3:1
Product weight 3250 g Drive pinion diameter 12 mm
Toothed belt pitch 5 mm
Max. output speed 300 1/min
Max. input speed 900 1/min
Max. driving torque 8.5 Nm
No-load driving torque <0.5 Nm
Ambient temperature-10 °C … 60 °C
LABS (PWIS) conformity VDMA24364 zone III
Note on materials RoHS-compliant
Housing material Wrought aluminum alloy Anodized
Material of drive shaft Wrought aluminum alloy Anodized
Drive shaft material High-alloy stainless steel
Cover material Wrought aluminum alloy
Anodized Toothed belt material
Polychloroprene with glass fiber
