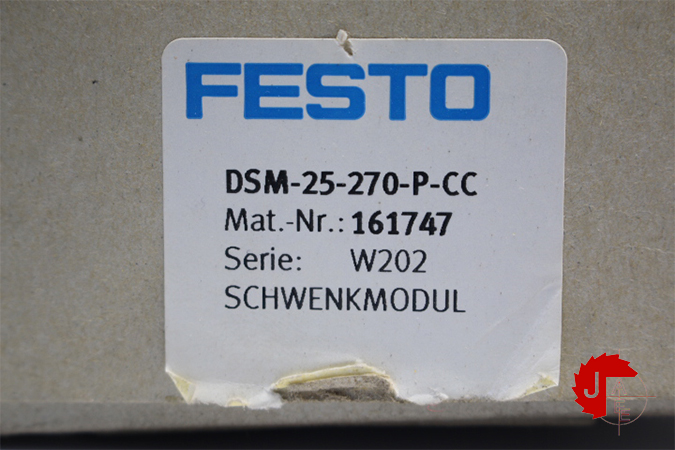

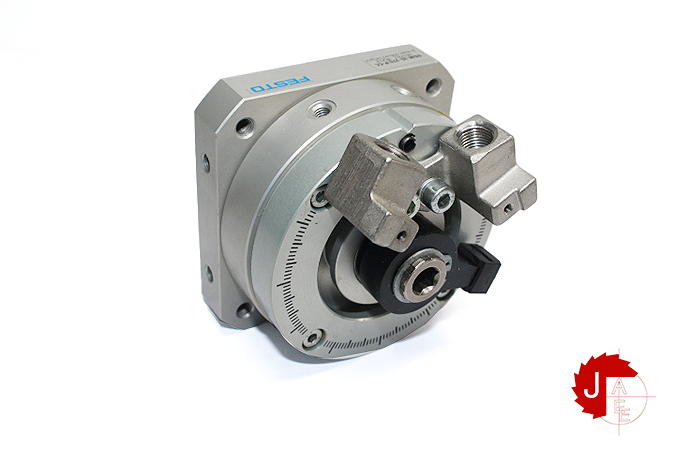

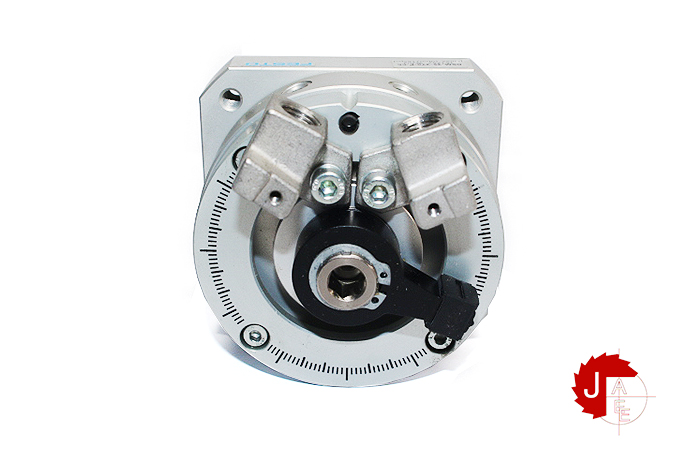

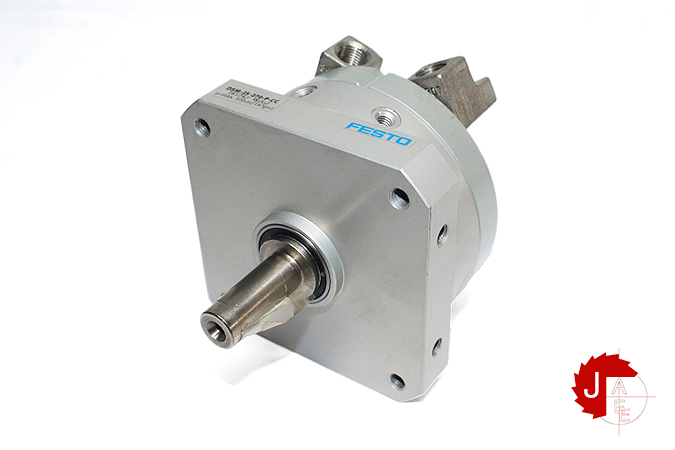

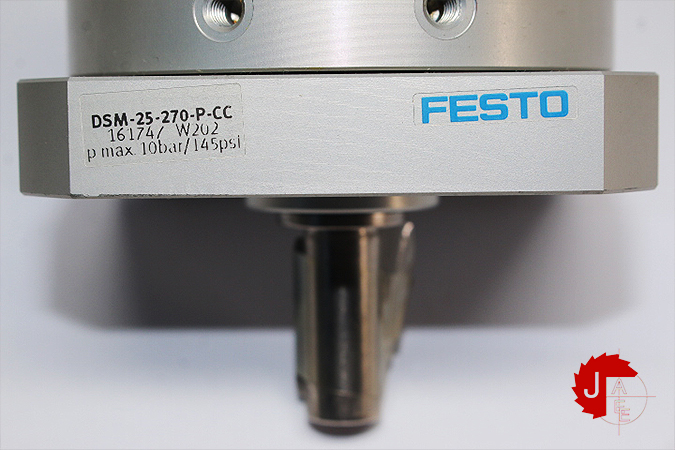

FESTO DSM-25-270-P-CC Swivel module 161747

FESTO DSM-25-270-P-CC Swivel module 161747

Manufacturer: FESTO
Type: Swivel module
Model: DSM-25-270-P-CC
Part No: 161747

Size 25
Theoretical torque at 0.6 MPa (6 bar, 87 psi) 5 Nm
Swivel angle 0 deg – 246 deg
Position detection Via proximity switch

Size 25
Cushioning angle 10 deg
Rotation angle adjustment range 0 … 246 deg
Swivel angle 246 deg
Cushioning CC: Shock absorber at both ends
Assembly position Any Fine adjustment-5 deg
Mode of operation double-acting
Design structure Rotary vane
Position detection No
Operating pressure 1.5 … 10 bar
Max. swivel frequency at 6 bar 1 Hz
