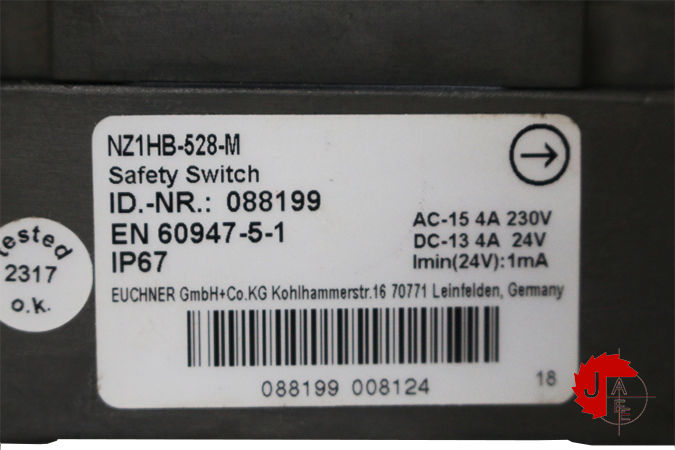

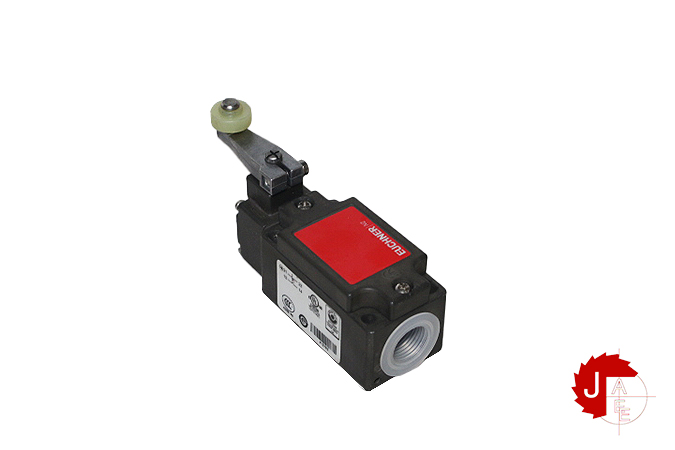

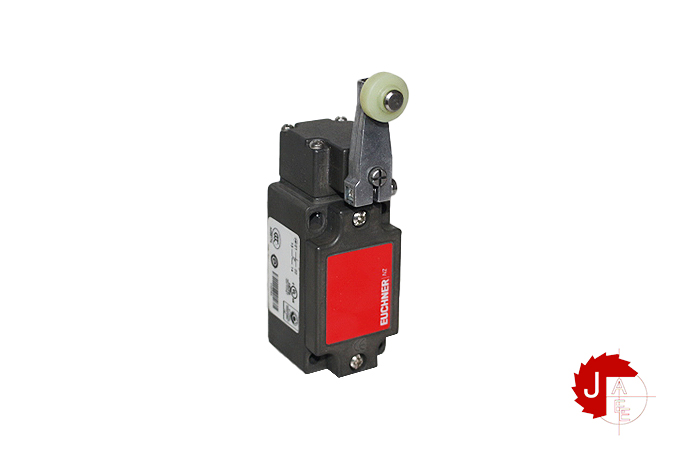

EUCHNER NZ1HB-528-M Safety switch

Name: EUCHNER NZ1HB-528-M Safety switch
SKU: 0998084
Availability: InStock

SKU: 0998084 Category: Limit Switch

Only 1 item left.

Add to Quote

Manufacturer: EUCHNER
Type: Safety switch
Model: NZ1HB-528-M

Connection cross section 0.34 … 1.5 mm²

Rated insulation voltage Ui 250 V

Rated impulse withstand voltage Uimp 2.5 kV

Utilization category

AC-154 A 230 V

DC-134 A 24 V

Approach speed 0.1 … 300 m/min

Connection type

1 x M20 x 1.5

Number of NO contacts 1

Number of door position positively driven contacts 1

Actuating element

Slide bearing plastic Lever arm

Actuating force min. 15 N

Installation orientation any

Mechanical life 30 x 10⁶

Switching principle Slow-action switching contact

Degree of protection IP67

Ambient temperature -25 … +80 °C
