ENDRESS+HAUSER Multicap DC11 Level measurement Capacitive DC11-P-RAGR2A1D11E

ENDRESS+HAUSER Multicap DC11 Level measurement Capacitive DC11-P-RAGR2A1D11E

Manufacturer: ENDRESS+HAUSER
Type: Level measurement Capacitive
Model: Multicap DC11

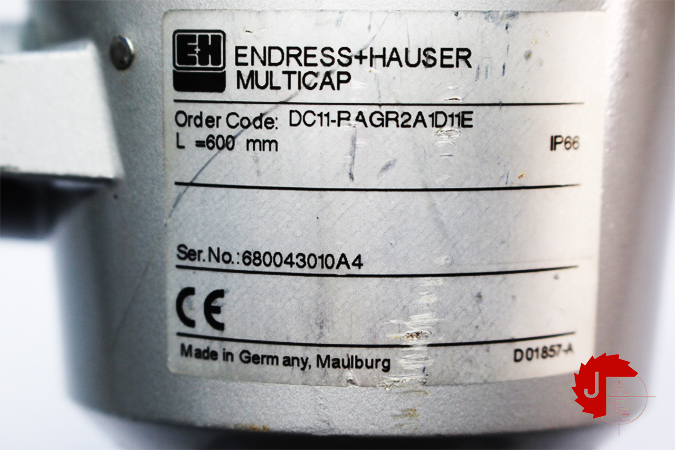

Art No: DC11-P-RAGR2A1D11E

Characteristic / Application

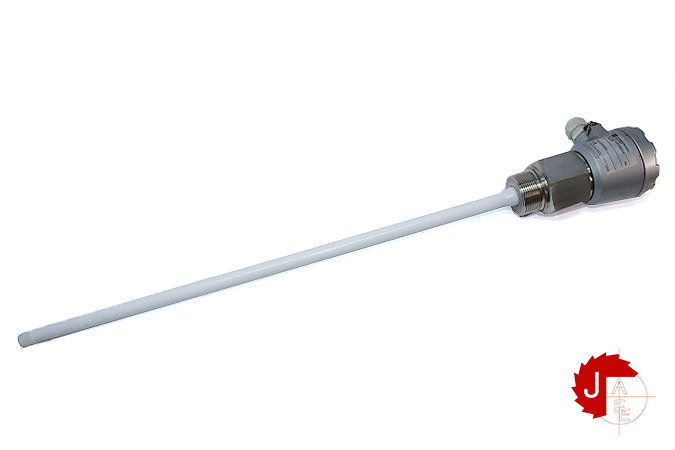

Fully insulated rod probe for high pressure and high temperature, suitable for heavy process condition.
European Certificate (EEx d, EEx ia) with Additional safety feature.

Specialities
Interface measurement, Foam detection

Supply / Communication
3-wire
PFM

Linearity error for conductive liquids
< 1% at 1m

Ambient temperature
Standard:
-40 °C … 70 °C
With separate housing:
-50 °C … 140 °C

Process temperature
-80 °C … 200 °C

Process pressure / max. overpressure limit
Vacuum … 100 bar

Main wetted parts
Insulation material: PTFE, PFA, PE
316TI

Process connection
G1 1/2″

Process connection hygienic
Tri-Clamp ISO2852
Dairy coupling

Max. measurement distance
650 mm

Communication
3-wire
PFM
