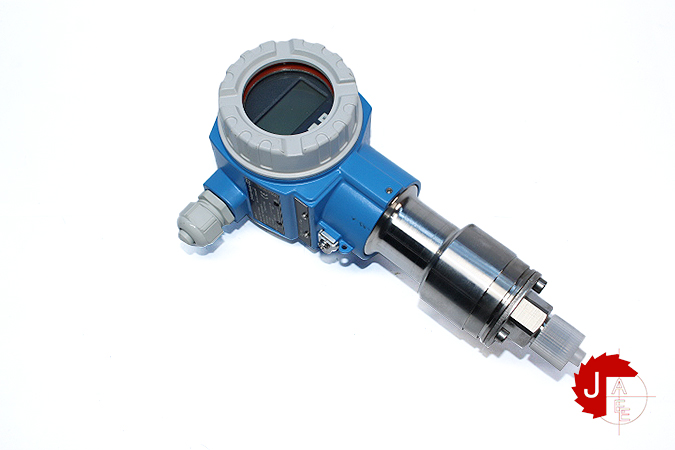

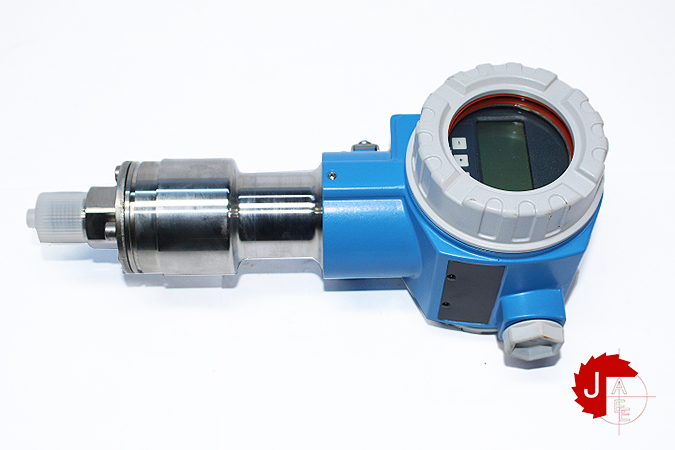

Endress+Hauser Cerabar PMC71 Absolute and gauge pressure Cerabar S PMC71-38N4/0

Endress+Hauser Cerabar PMC71 Absolute and gauge pressure Cerabar S PMC71-38N4/0

Manufacturer: Endress+Hauser
Type: Absolute and gauge pressure
Model: Cerabar PMC71
Part No: Cerabar S PMC71-38N4/0

Digital pressure transmitter with oil-free ceramic sensor for measurement in gases or liquids

Specs at a glance
Accuracy
Standard: 0.05%
Platinum: up to 0.025%

Process temperature
-40°C…150°C
(-40°F…302°F)

Pressure measuring range
-1 bar…10 bar

Process pressure / max. overpressure limit
60bar (900psi)

Main wetted parts
Ceraphire ceramic
Alloy C
316L
Monel
PVDF

Max. measurement distance
400m (1312ft) H2O
