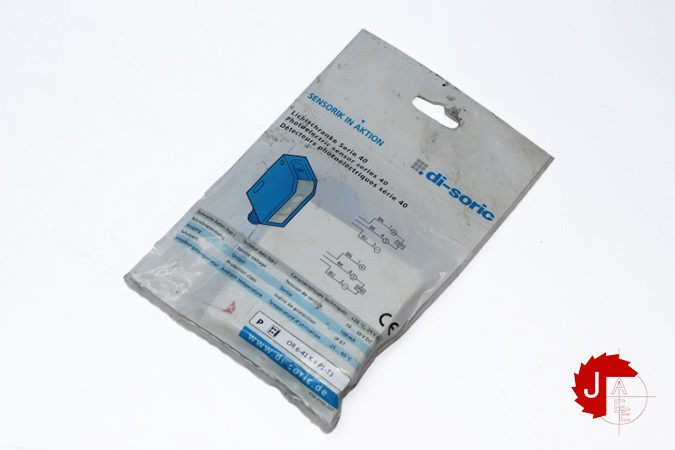

di-soric OR 6-41 K 4 P1-T3 Retroreflective sensor 206206

Manufacturer: di-soric
Type: Retroreflective sensor

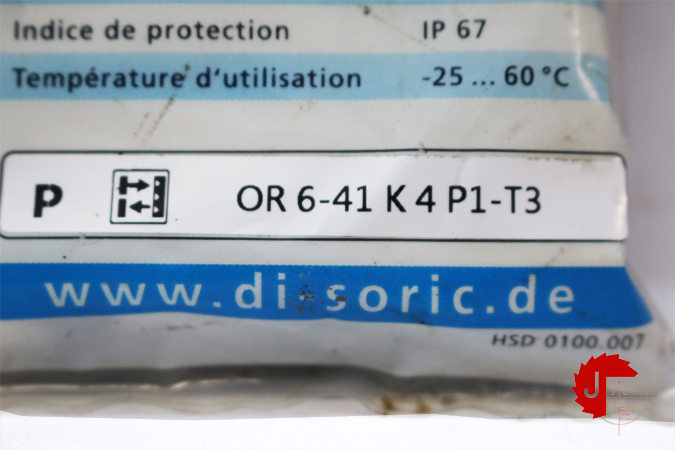

Model: OR 6-41 K 4 P1-T3
Part No: 206206

Electrical features
Service voltage 10 … 30 V DC
No-load current (max.) 25 mA
Mechanical features
Housing dimensions 38 x 27 x 15 mm
Housing length 27 mm
Housing height 38 mm
Housing width 15 mm
Housing material Plastic
Material Plastic (Window)

Output, input, interface
Switching output pnp, 100 mA, NC
Optical data Light source
LED Color red
Wavelength 630 … 670 nm
Modulation Clocked
