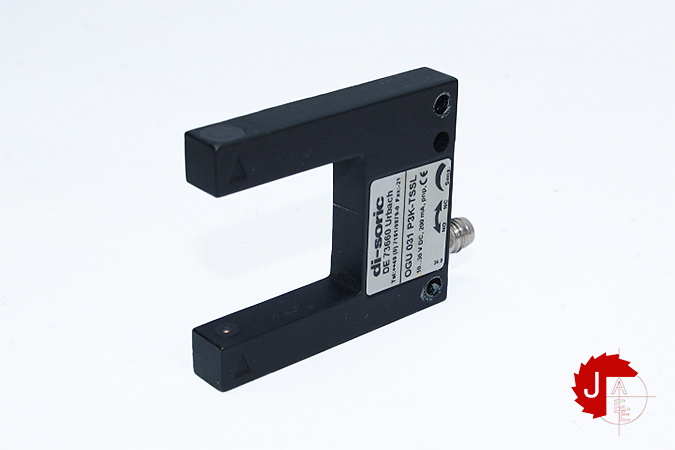

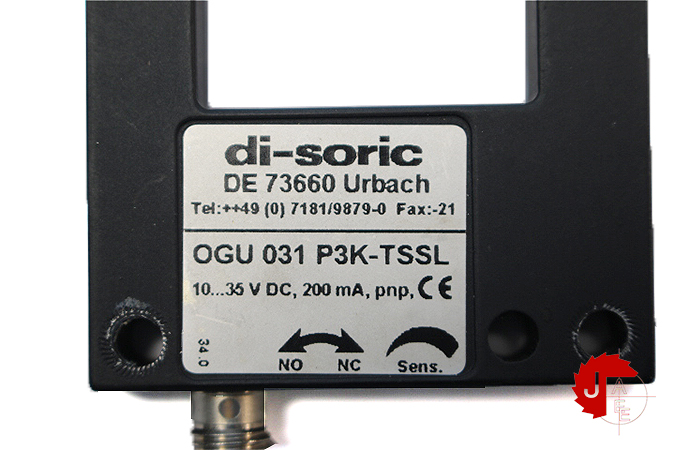

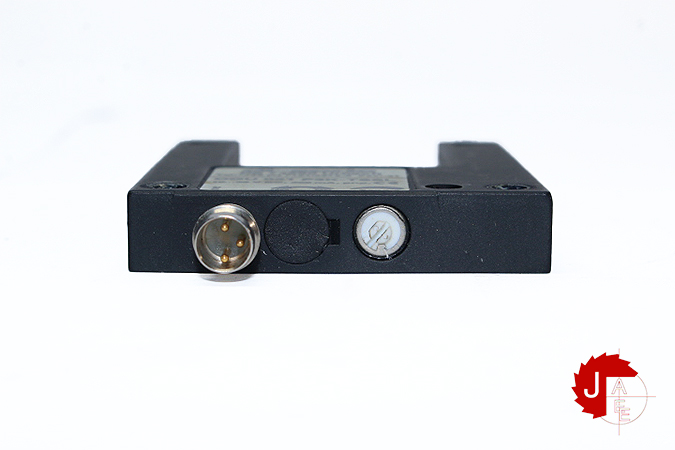

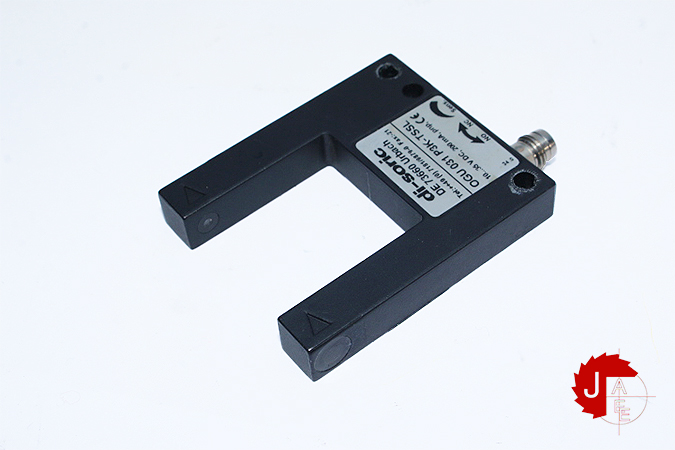

di-soric OGU 031 P3K-TSSL Fork light barrier OGU with LED 203550

di-soric OGU 031 P3K-TSSL Fork light barrier OGU with LED 203550

Manufacturer: di-soric
Type: Fork light barrier OGU with LED
Model: OGU 031 P3K-TSSL
Art No: 203550

Electrical features
Service voltage 10 V … 35 V DC (Supply Class 2)
No-load current (max.) 30 mA
Insulation voltage endurance 500 V
Mechanical features
Leg length internal 35 mm
Housing dimensions 50 x 60 x 10 mm
Housing length 60 mm
Housing height 50 mm
Housing width 10 mm
Housing material Die-cast zinc (Black, painted)
