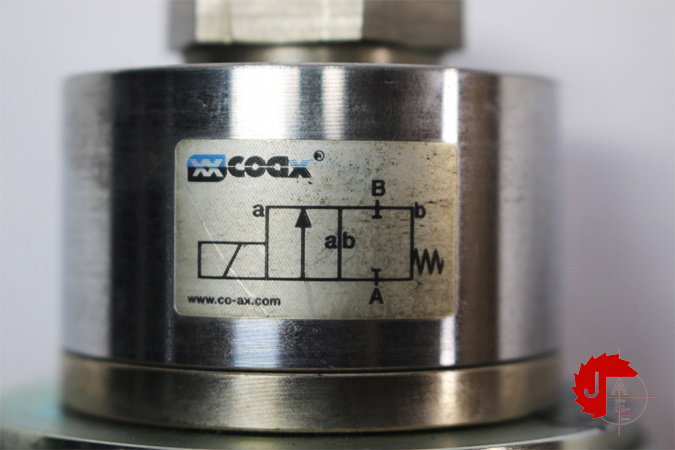

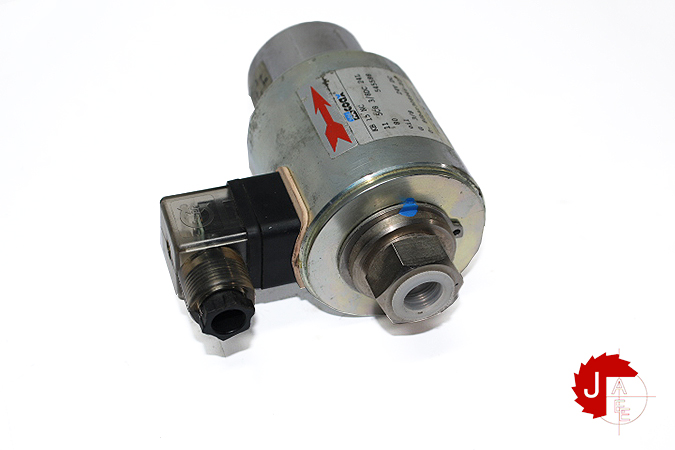

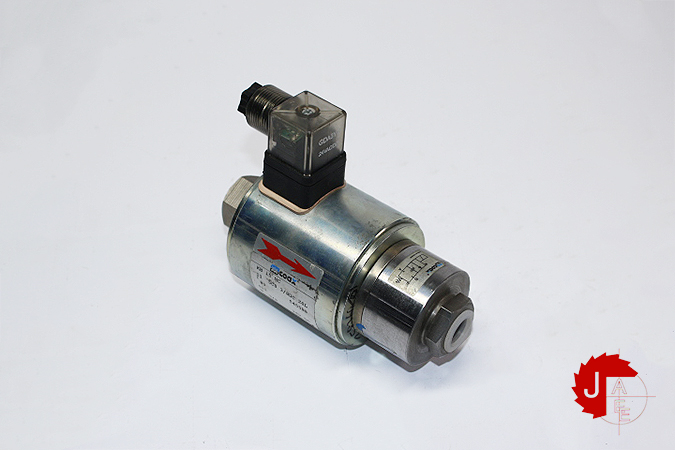

Manufacturer: Coax
Type: High Pressure coaxial Valves

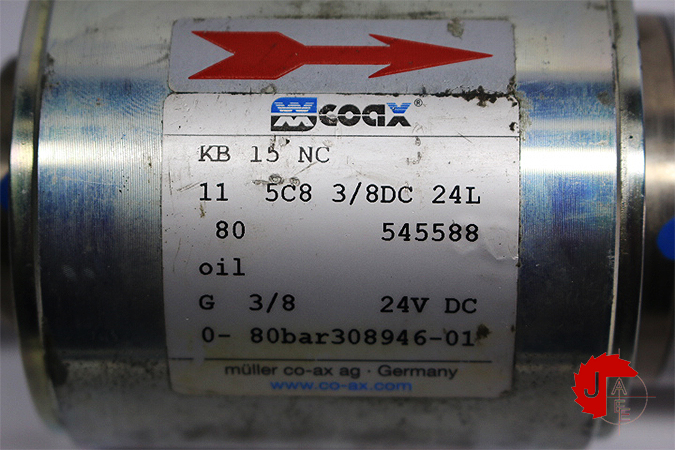

Model: KB 15 NC 11 5C8 3/8DC 24L
Part No: KB 15 NC
Ports threads: G 3/8
function NC
pressure range: 0-80 bar DN 5
KV value [l/min]: 13,5
media: gaseous liquid
flow direction A B as marked
switching cycles 260 1/min
switching time: opening 60 ms closing 170 ms
nominal voltage: Un 24 V DC +5% / -10%
actuation DC direct-current magnet
| Manufacturer | Muller Coax |
|---|---|
| Model | KB 15 NC High Pressure coaxial Valves KB 15 NC 11 5C8 3/8DC 24L |
| Condition | New |
