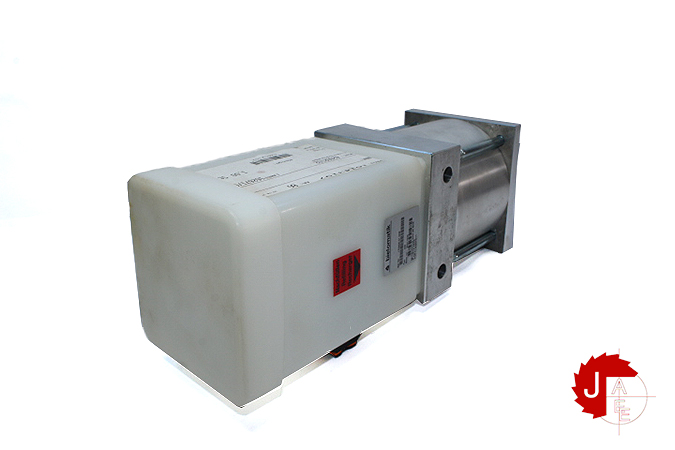

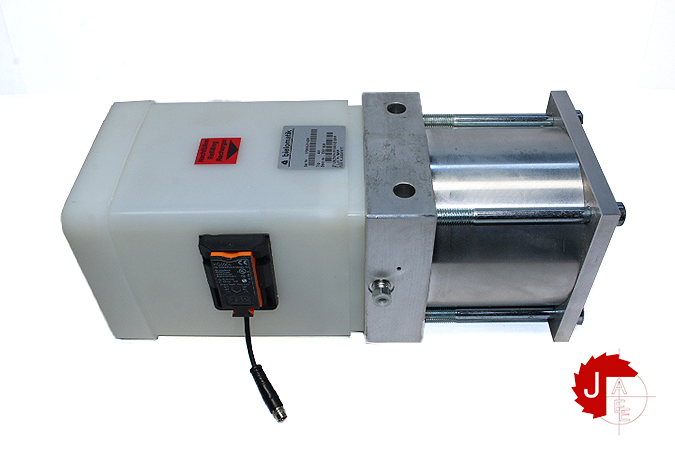

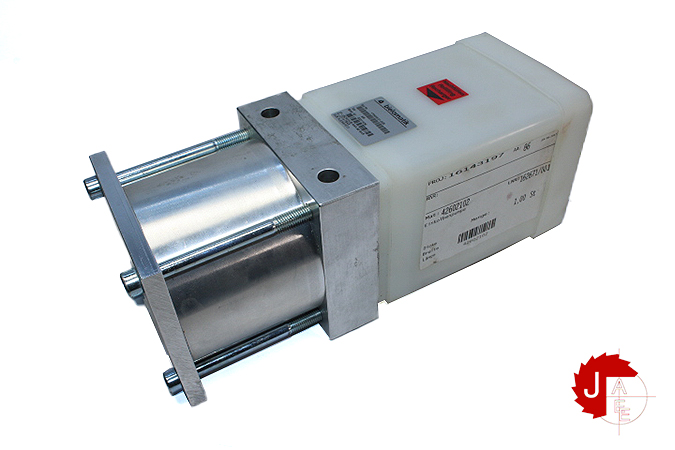

bielomatik AM 30011634 SINGLE PISTON PUMP (capacitive level control)

bielomatik AM 30011634 SINGLE PISTON PUMP (capacitive level control)

Manufacturer: bielomatik
Type: SINGLE PISTON PUMP (capacitive level control)
Model: AM 30011634

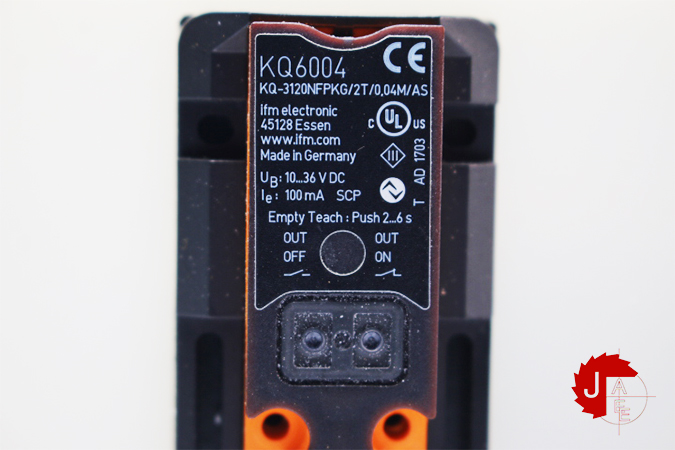

The single piston pump AM is a robust pneumatic pump. It is suitable for automatic lubrications, which must be done several times daily to maximum once per minute. The capacitive level control offers a reliable use of fluid greases, which are difficult to detect.

CHARACTERISTICS
Max pressure: – 60 bar (870 psi)
Pressure Ratio: – P2=9,5x(P1-0,67)
Ambient temperature: – from 32 to 176 °F
Range of viscosity: – From 50 to 750 mm²/s, NLGI 000-0
