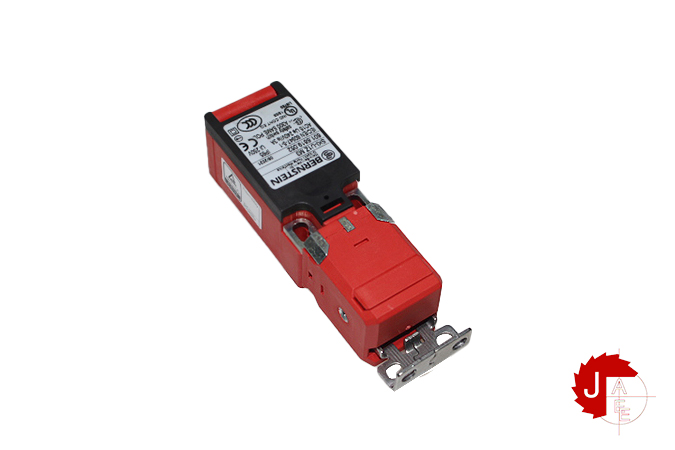

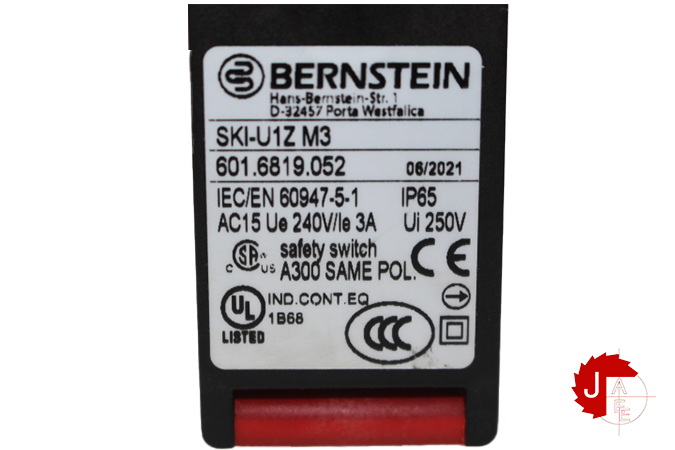

Manufacturer: BERNSTEIN
Type: Plastic-bodied safety switch
Model: SKI-U1Z M3
Switch with rotary head for safety applications
Standard switch with mounting dimensions conforming to DIN EN 50047
Protection class IP 65 to VDE 0470 T1
Enclosure and cover PA 6, self-extinguishing (UL-94-V0)
Actuator can be repositioned by 4 x 90°
Two actuator openings which makes horizontal and vertical operation possible
Cable entry M20 x 1.5
Versions: 1 NC / 1NO, 2 NC
All NC contacts with in the circuit diagram are positively opening contacts
Type: Zb (galvanically isolated changeover contact)
| Manufacturer | BERNSTEIN |
|---|---|
| Model | SKI-U1Z M3 Plastic-bodied safety switch |
| Condition | New |
