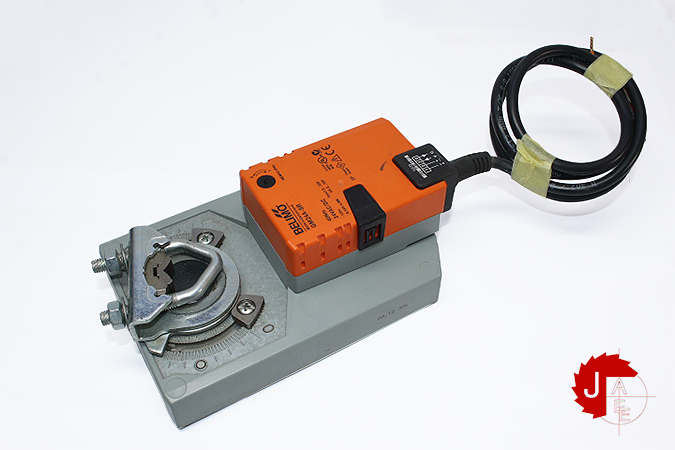

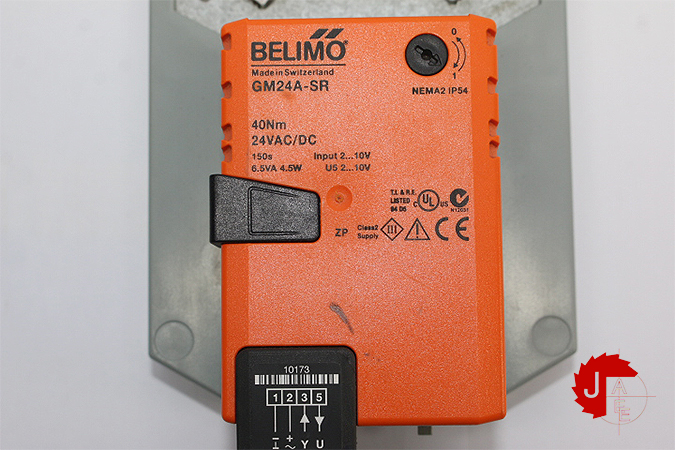

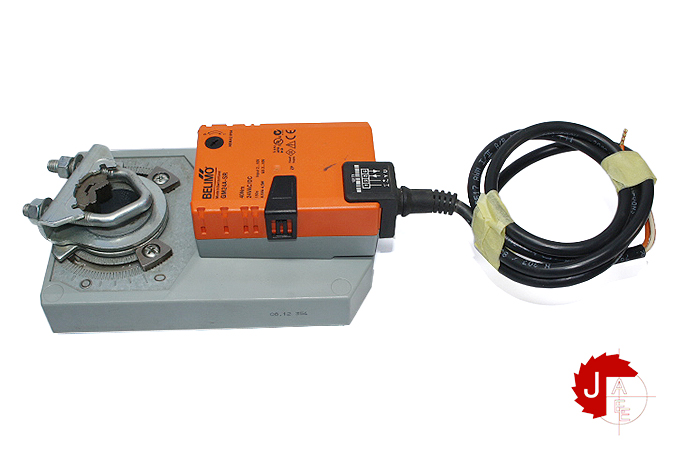

BELIMO GM24A-SR Rotary actuator, 40 Nm
Manufacturer: BELIMO
Type: Rotary actuator, 40 Nm
Model: GM24A-SR
Rotary actuator, 40 Nm, AC/DC 24 V, 2…10 V, 150 s, IP54
Specifications
Voltage AC/DC AC/DC 24 V
Power consumption (running) 4.5 W
Power consumption (holding) 2 W
Power Consumption For Wire Sizing 6.5 VA
Connection Supply Control Cable 1 m, 4x 0.75 mm²
Torque 40 Nm
Control type DC 2…10 V
Direction Of Motion Motor selectable with switch 0/1
Manual override With push-button, can be locked
Angle of rotation 95
Running time (motor) 150 s / 90°
Mechanical interface
Universal shaft clamp reversible 12…26.7 mm
Protection category IP54
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2
Ambient Temperature -30…50°C [-22…122°F]
| Manufacturer | BELIMO |
|---|---|
| Model | GM24A-SR Rotary actuator, 40 Nm |
| Condition | NEW/OUT BOX |
