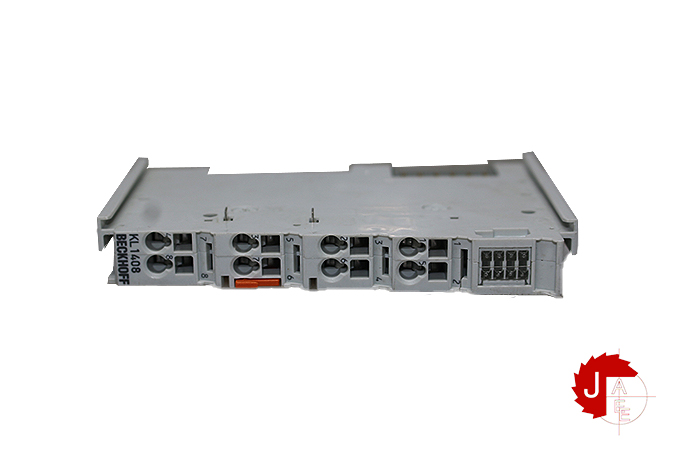

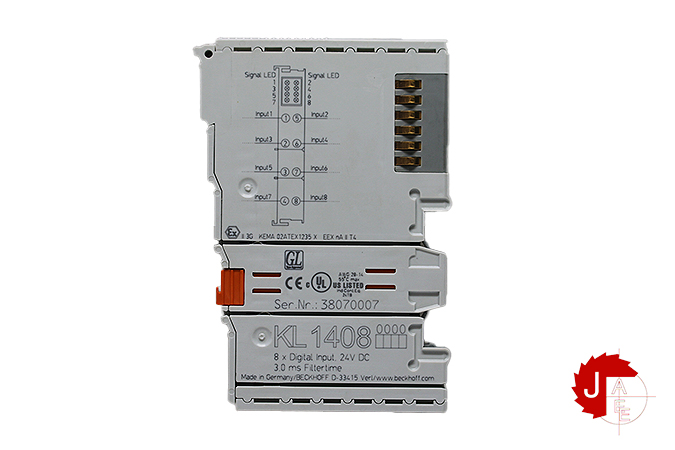

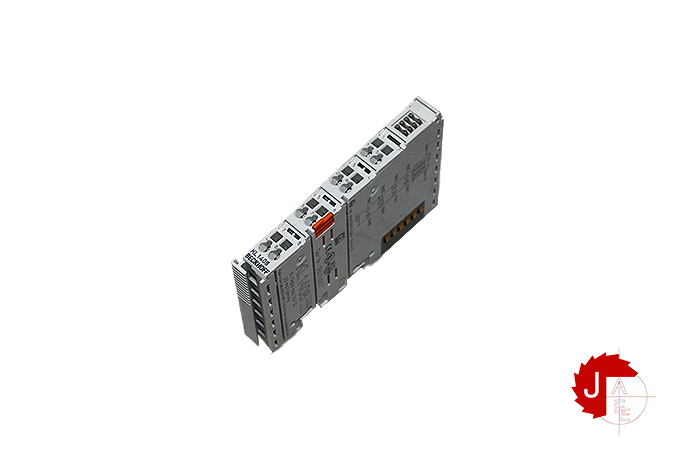

BECKHOFF KL1408 Bus Terminal, 8-channel digital input, 24 V DC, 3 ms, 1-wire connection

Manufacturer: BECKHOFF
Type: Bus Terminal, 8-channel digital input, 24 V DC, 3 ms, 1-wire connection
Model: KL1408

Connection technology 1-wire
Specification EN 61131-2, type 1/3
Number of inputs 8
Nominal voltage 24 V DC (-15 %/+20 %)
“0” signal voltage -3…+5 V (EN 61131-2, type 1/3)
“1” signal voltage 11…30 V (EN 61131-2, type 3)
Input filter typ. 3.0 ms
Input current typ. 3 mA (EN 61131-2, type 3)
Current consumption K-bus typ. 5 mA
Current consumption power contacts typ. 2 mA + load
Electrical isolation 500 V (K-bus/field potential)
Bit width in the process image 8 inputs
Configuration no address or configuration setting
Weight approx. 55 g
