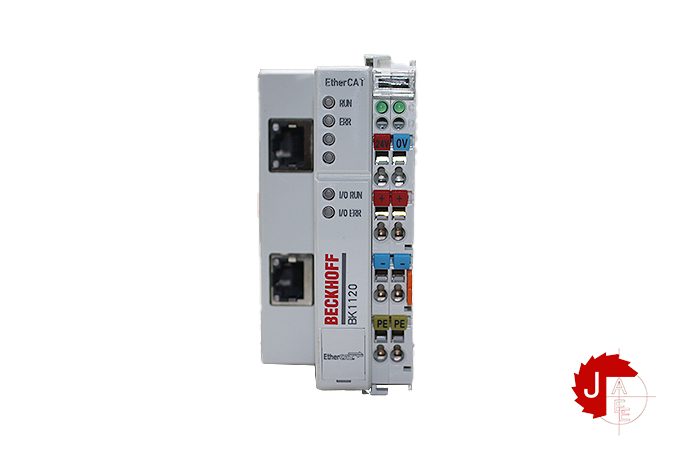

BECKHOFF BK1120 Ether CAT Bus Coupler for standard Bus Terminals

Manufacturer: BECKHOFF
Type: Ether CAT Bus Coupler for standard Bus Terminals
Model: BK1120

Number of Bus Terminals 64 (255 with K-bus extension)
Max. number of bytes fieldbus 1024 byte input and 1024 byte output
Configuration possibility via KS2000 or EtherCAT (ADS)
Bus interface 2 x RJ45
Power supply 24 V DC (-15 %/+20 %)
Input current 70 mA + (total K-bus current)/4, 500 mA max.
Starting current approx. 2.5 x continuous current
Recommended fuse ≤ 10 A
Current supply K-bus 1750 mA
Power contacts max. 24 V DC/max. 10 A
Electrical isolation 500 V (power contact/supply voltage/Ethernet)
Distance between stations 100 m (100BASE-TX)
Weight approx. 150 g
