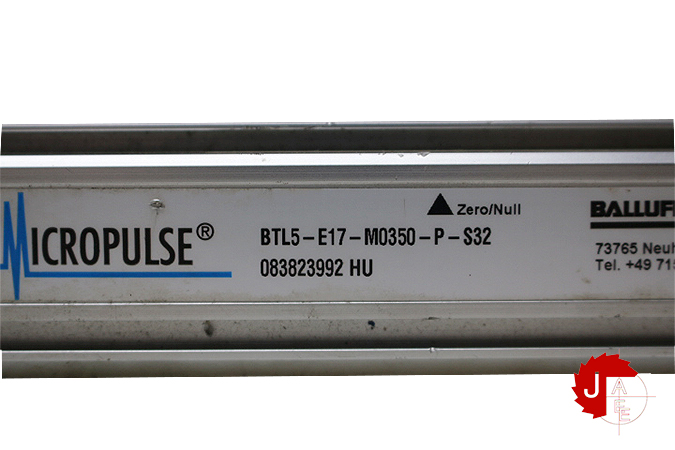

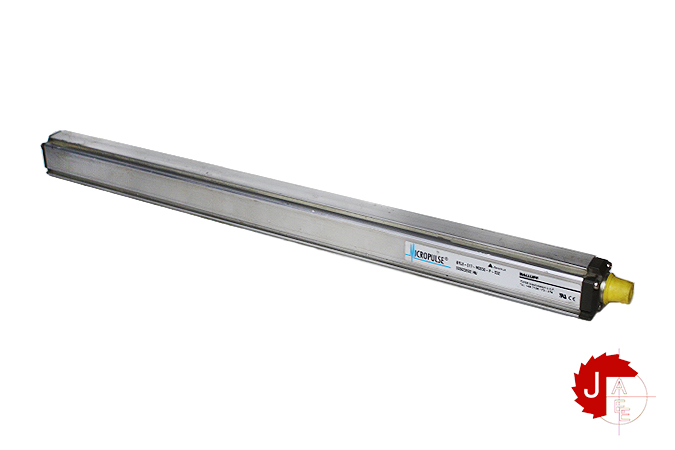

BALLUFF BTL5-E17-M0350-P-S32 Magneto strictive linear position sensors in profile design BTL035Y

Manufacturer: BALLUFF
Type: Magneto strictive linear position sensors in profile design
Model: BTL5-E17-M0350-P-S32
Part No: BTL035Y

Style Profile series
Mounting part Mounting clamps
Housing material Aluminium, Anodized
Magnets, number max. 1
Connection Connector, M16x0.75, 8-pin
Analog output Analog, current 20…4 mA
Measuring range 350 mm
Resolution ≤ 0.2 µA
Non-linearity max. ±100 µm
Repeat accuracy ≤ ± 0.2 µA
Operating voltage Ub 20…28 VDC
Ambient temperature -40…85 °C
IP rating IP67
