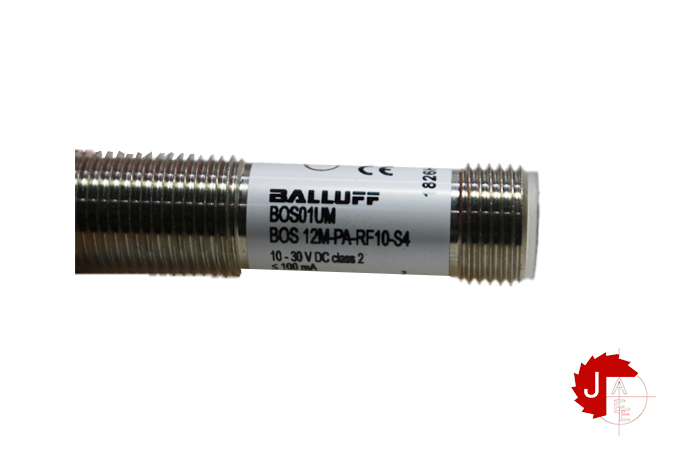

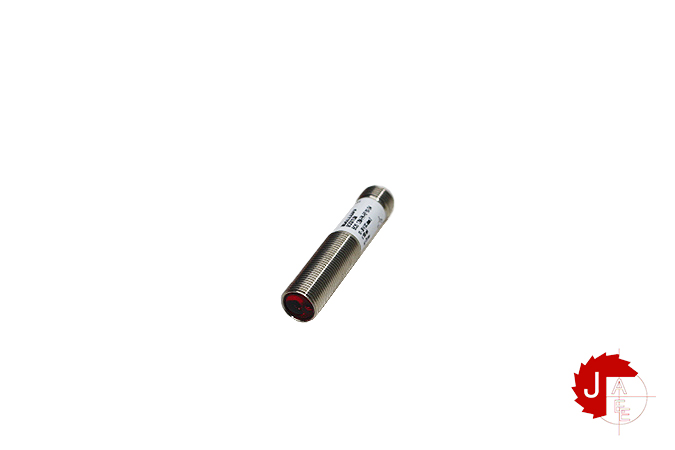

BALLUFF BOS01UM Diffuse sensor with background suppression BOS 12M-PA-RF10-S4
Dimension Ø 12 x 60 mm
Interface PNP normally open (NO) / PNP normally closed (NC)
Principle of operation Photoelectric sensor
Range 1…25 mm
75.00 $
Availability: 2 in stock
Manufacturer: BALLUFF
Type: Diffuse sensor with background suppression
Model: BOS 12M-PA-RF10-S4
Part No: BOS01UM
Series 12M
Dimension Ø 12 x 60 mm
Interface PNP normally open (NO) / PNP normally closed (NC)
Principle of operation Photoelectric sensor
Principle of optical operation Diffuse sensor, triangulation
Special optical feature Fixed focus
Fixed background suppression Beam characteristic
Focus, typical at 25 mm Light type
LED, red light Light spot size Ø 2 mm at 25 mm
Range 1…25 mm
Connection Connector, M12x1-Male, 4-pin
Housing material Brass, nickel-plated
Material sensing surface PMMA
Operating voltage Ub 10…30 VDC
| Manufacturer | BALLUFF |
|---|---|
| Model | BOS01UM Diffuse sensor with background suppression BOS 12M-PA-RF10-S4 |
| Condition | New |
