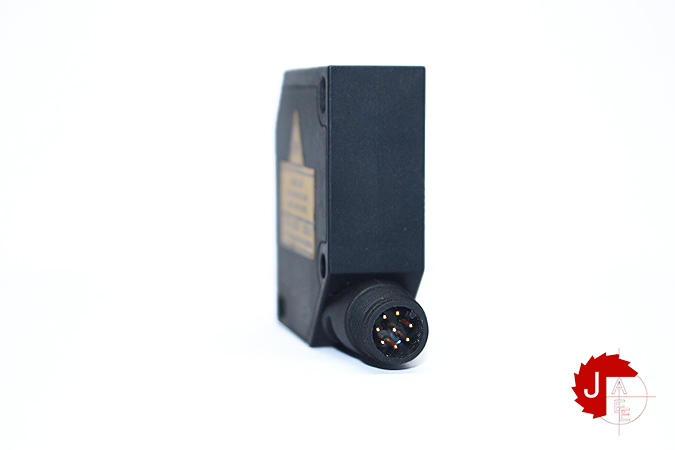

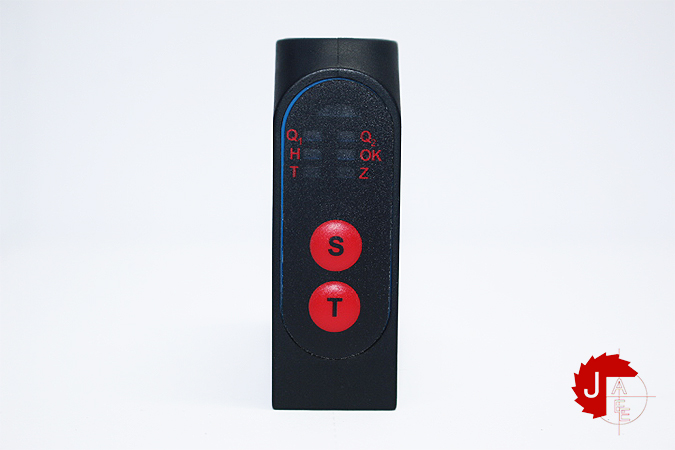

BALLUFF BOD006 Photoelectric distance sensors BOD 26K-LB05-S115-C

Manufacturer: BALLUFF
Type: Photoelectric distance sensors
Model: BOD 26K-LB05-S115-C
Part No: BOD006

Series 26K
Dimension 17 x 50 x 50 mm
Interface Analog, current 4…20 mA linear rising/falling 2x PNP NO/NC
Principle of operation Photoelectric distance sensor
Principle of optical operation Triangulation
Beam characteristic Divergent
Light type Laser red light
Light spot size 2 x 4.5 mm at 300 mm
Range 80…300 mm, adjustable
Accuracy ±0.25 % FS
Repeat accuracy 0.25 %FS
Resolution 0.1 %FS
Connection Connector, M12x1-Male, 8-pin
Housing material ABS
Operating voltage Ub 18…30 VDC
