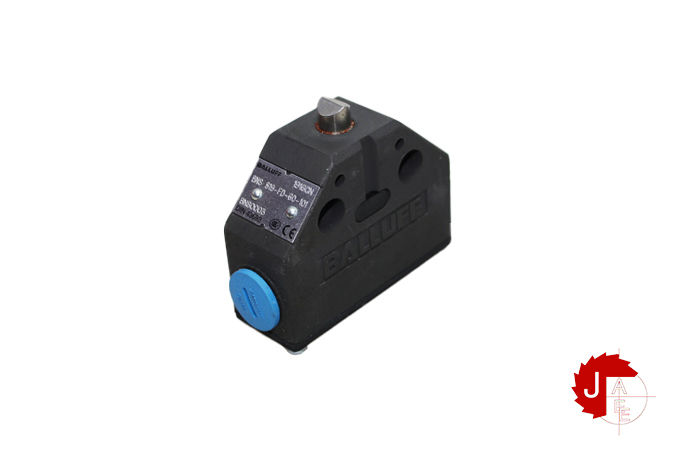

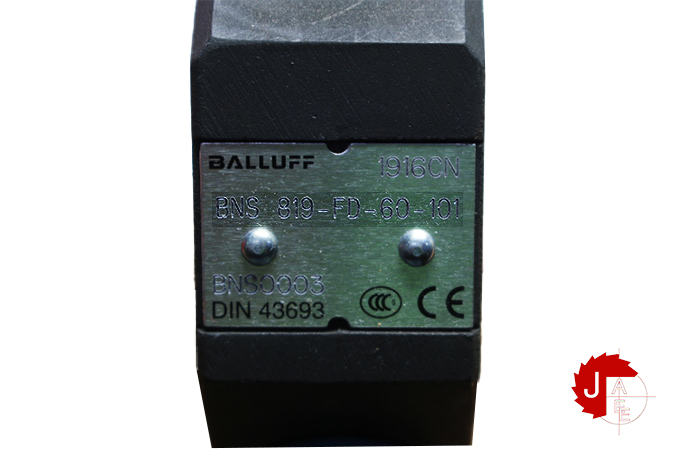

BALLUFF BNS 819-FD-60-101 Mechanical single position limit switches BNS0003

Manufacturer: BALLUFF
Type: Mechanical single position limit switches
Model: BNS 819-FD-60-101
Part No: BNS0003

Dimension 74 x 28 x 61 mm
Housing material Aluminium, Anodized
Number of switching positions 1x Chisel
Version Snap contact
Operating principle 1. Switch position: Mechanical
Continuous current 1. Switch position: 6 A
Rated operating voltage Ue 1. Switch position: 250 V AC
Installation any
Approach direction lateral or at right angles to mounting surface
Approach speed 1. Switch position: 40 m/min
Connection type 1. Switch position: Screw terminal
Ambient temperature -5…85 °C
IP rating IP67
