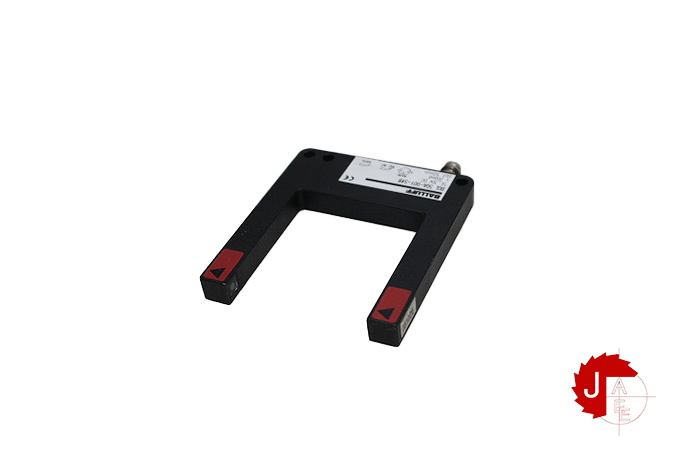

BALLUFF BGL 50A-001-S49 Fork sensors BGL001J

Manufacturer: BALLUFF
Type: Fork sensors metal
Model: BGL 50A-001-S49
Part No: BGL001J

Series A
Dimension 10 x 70 x 88 mm
Fork opening 50 mm
Interface PNP normally open/normally closed (NO/NC)
Principle of operation Fork sensor
Principle of optical operation Through-beam sensor
Beam characteristic Divergent
Light type LED, red light
Light spot size Ø 1.5 mm Light exit
Connection Connector, M8x1-Male, 3-pin
Housing material Zinc, Die casting, Painted
Material sensing surface Glass
Operating voltage Ub 10…30 VDC
