BALLUFF

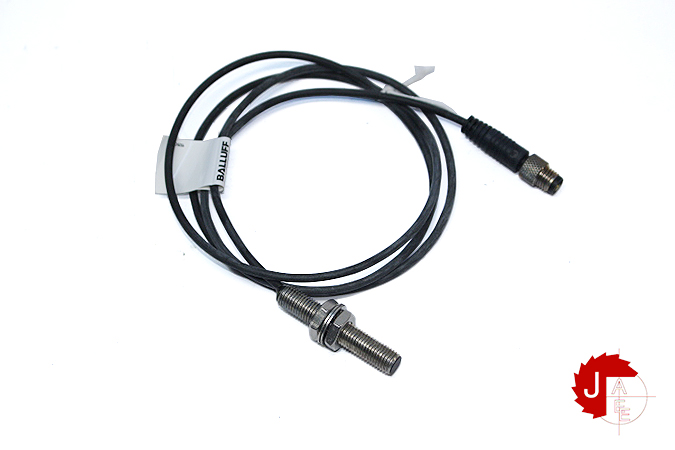

BALLUFF BES01AT Inductive standard sensors BES 516-324-G-EO-C-S49-01
Dimension Ø 8 x 45 mm
Installation for flush mounting
Range 2 mm
Switching output PNP normally open (NO)
Availability: 2 in stock
Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BES 516-324-G-EO-C-S49-01
Part No: BES01AT
Dimension Ø 8 x 45 mm
Style Housing M8x1
Installation for flush mounting
Range 2 mm
Switching output PNP normally open (NO)
Switching frequency 5000 Hz
Housing material Stainless steel
Material sensing surface PBT

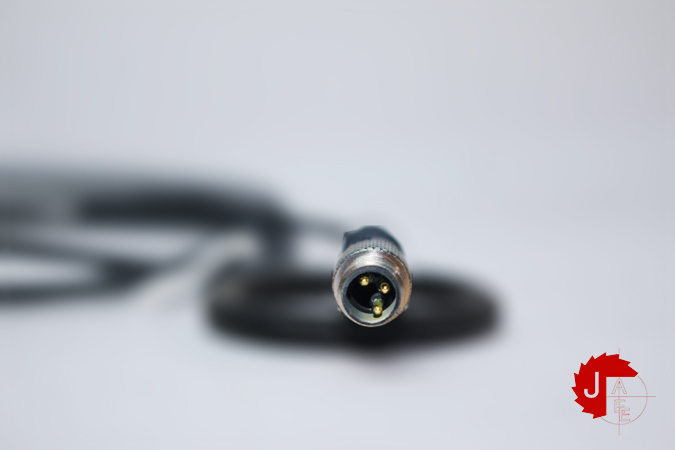

Connection Cable with connector, M8x1-Male, 3-pin, 1.00 m, PUR
Operating voltage Ub 10…30 VDC
Ambient temperature -40…85 °C
IP rating IP68
| Manufacturer | BALLUFF |
|---|---|
| Model | BES01AT Inductive standard sensors BES 516-324-G-EO-C-S49-01 |
| Condition | New |
