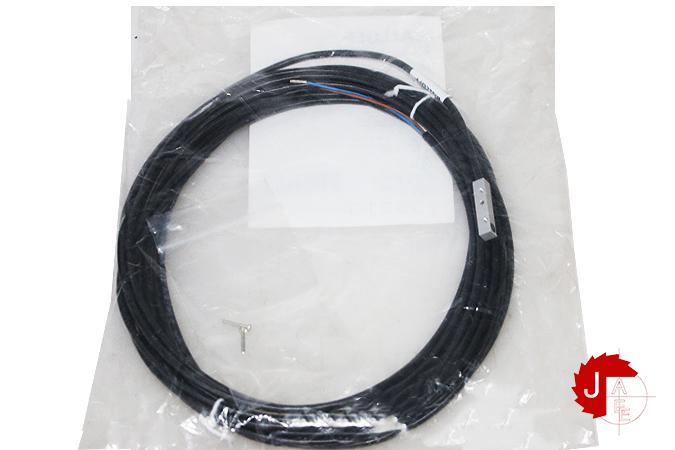

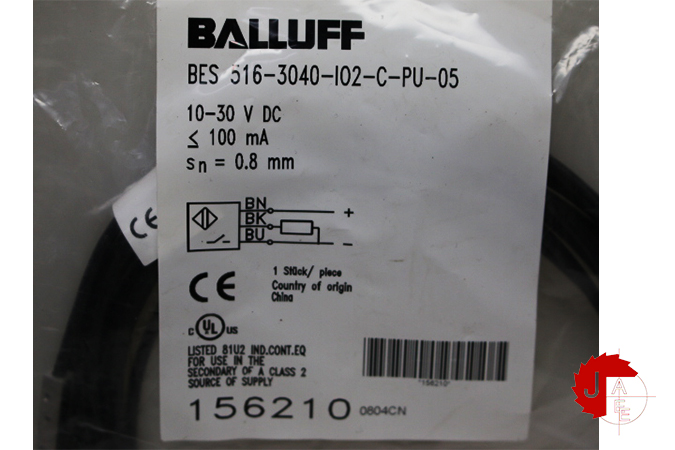

BALLUFF BES019R Inductive standard sensors BES 516-3040-102-C-PU-05

Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BES 516-3040-102-C-PU-05
Part No: BES019R

Dimension 25 x 5 x 5 mm
Style Housing 5×5
Installation for flush mounting
Range 0.8 mm
Switching output PNP normally open (NO)
Switching frequency 3000 Hz
Housing material Aluminium, Anodized
Material sensing surface PBT
Connection Cable, 5.00 m, PUR
Operating voltage Ub 10…30 VDC
Ambient temperature -25…70 °C
IP rating IP67
