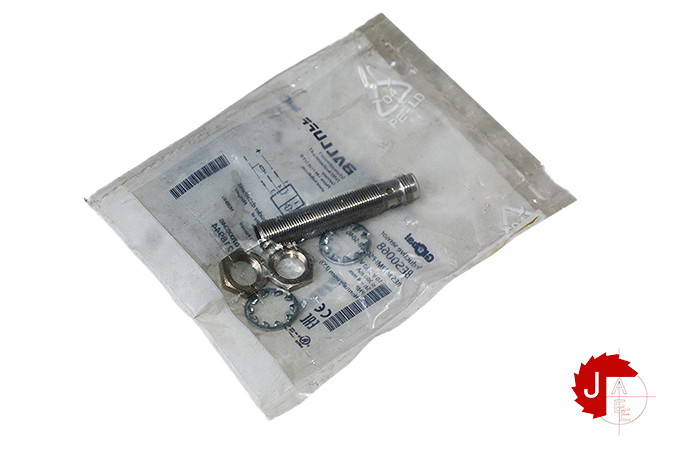

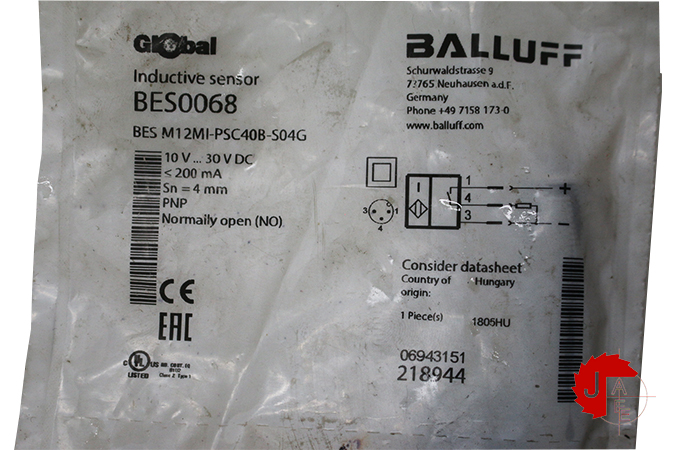

BALLUFF BES0068 Inductive standard sensors BES M12MI-PSC40B-S04G

Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BES0068
Part No: BES M12MI-PSC40B-S04G

Dimension Ø 12 x 65 mm
Style Housing M12x1
Installation for flush mounting
Range 4 mm
Switching output PNP normally open (NO)
Switching frequency 2500 Hz
Housing material Brass, Nickel-free coated
Material sensing surface PBT
Connection Connector, M12x1-Male, 3-pin
Operating voltage Ub 10…30 VDC
Ambient temperature -25…70 °C
IP rating IP68
