BALLUFF

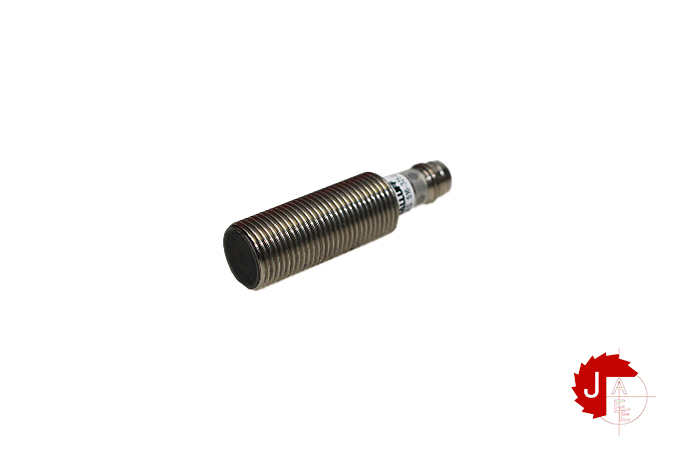

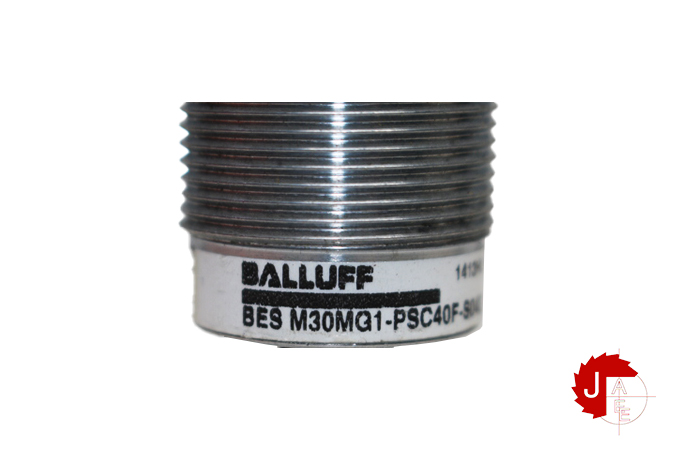

BALLUFF BES M30MG1 Inductive standard sensors BES M30MG1-PSC40F-S04G
Dimension Ø 30 x 73.5 mm
Range 40 mm
Switching output PNP normally open (NO)
70.00 $
Availability: 5 in stock
Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BES M30MG1-PSC40F-S04G
Part No: BES M30MG1
Dimension Ø 30 x 73.5 mm
Style Housing M30x1.5
Installation non-flush
Range 40 mm
Switching output PNP normally open (NO)
Switching frequency 100 Hz
Housing material Brass, Chrome-plated
Material sensing surface PBT
Connection Connector, M12x1-Male, 4-pin
Operating voltage Ub 10…30 VDC
Ambient temperature -25…70 °C
IP rating IP54
| Manufacturer | BALLUFF |
|---|---|
| Model | BES M30MG1 Inductive standard sensors BES M30MG1-PSC40F-S04G |
| Condition | New |
