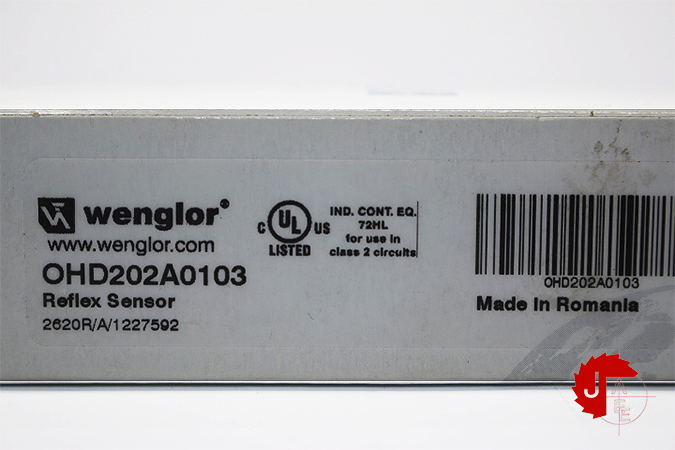

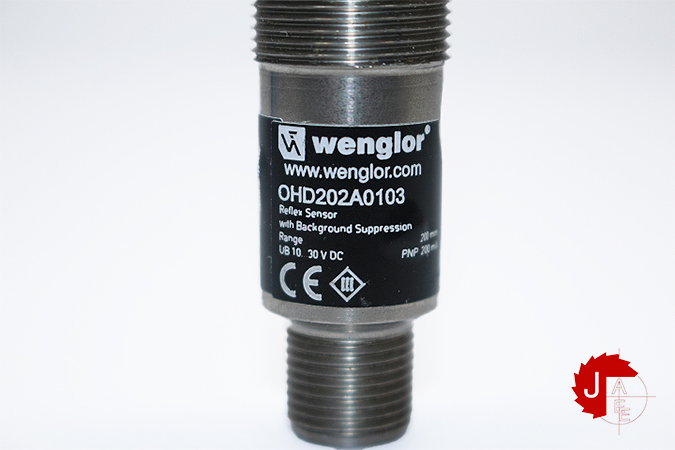

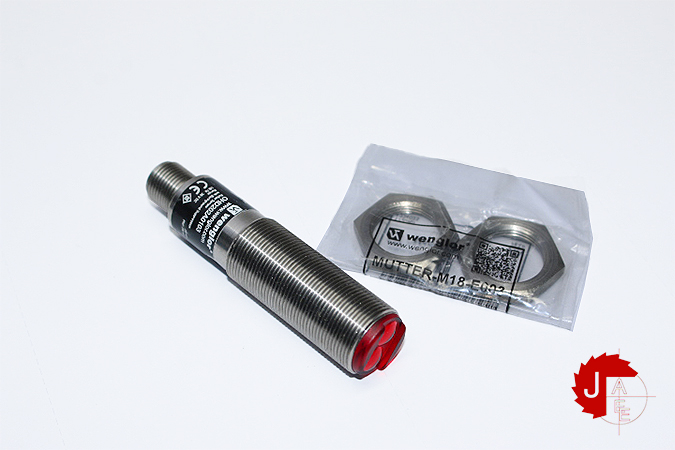

WENGLOR OHD202A0103 Reflex Sensor with Background Suppression

Range 200 mm
Setting Range 35 … 200 mm

Supply Voltage 10 … 30 V DC

Connection M12 × 1; 4-pin

Output
PNP NC, PNP NO yes
Adjustable parameters Circuit NC / NC+NO / NO

SKU: 0998759 Category: Tags: ,

Only 1 item left.

Manufacturer: WENGLOR
Type: Reflex Sensor with Background Suppression
Model: OHD202A0103

Range 200 mm
Setting Range 35 … 200 mm
Switching Hysteresis < 5 %
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 1,000 Hz
Response Time 500 µs
Temperature Drift < 5 %
Temperature Range -25 … 60 °C
Number of Switching Outputs 2
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA

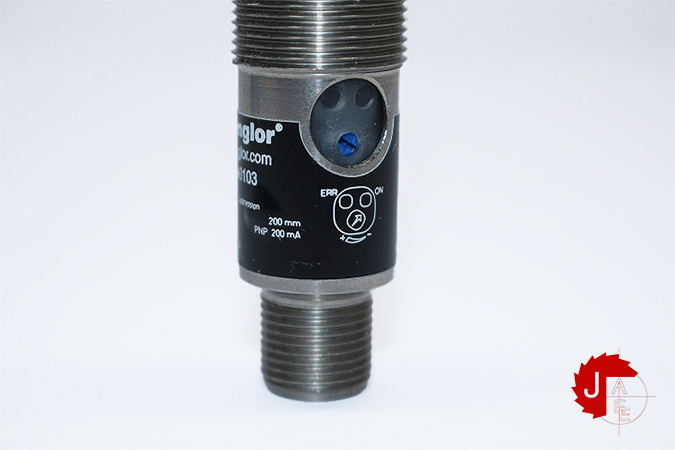

Setting Method Potentiometer
Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67

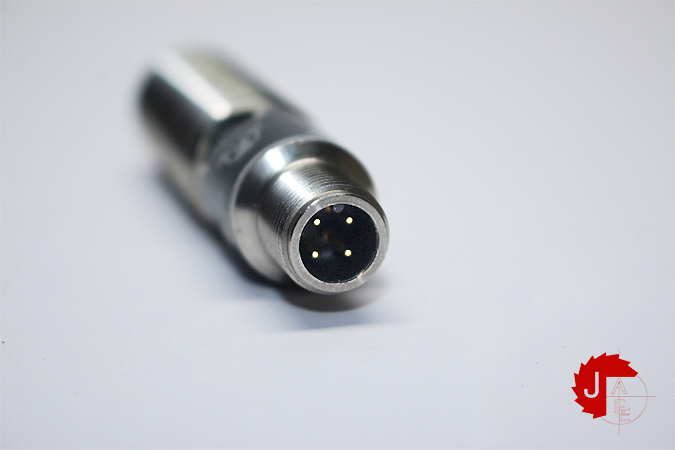

Connection M12 × 1; 4-pin

Output
PNP NC, PNP NO yes
Adjustable parameters Circuit NC / NC+NO / NO
