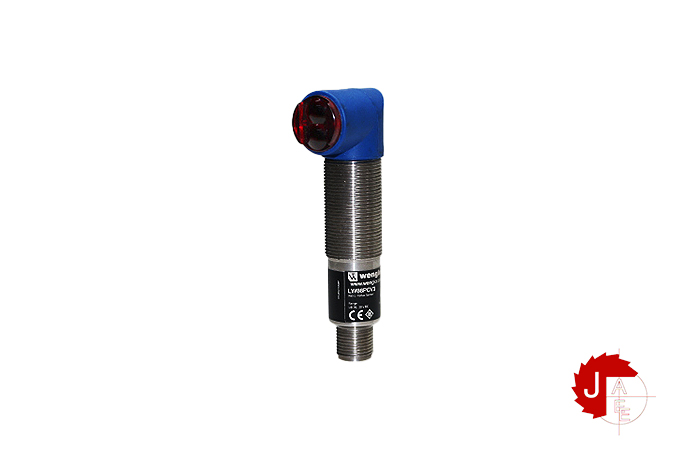

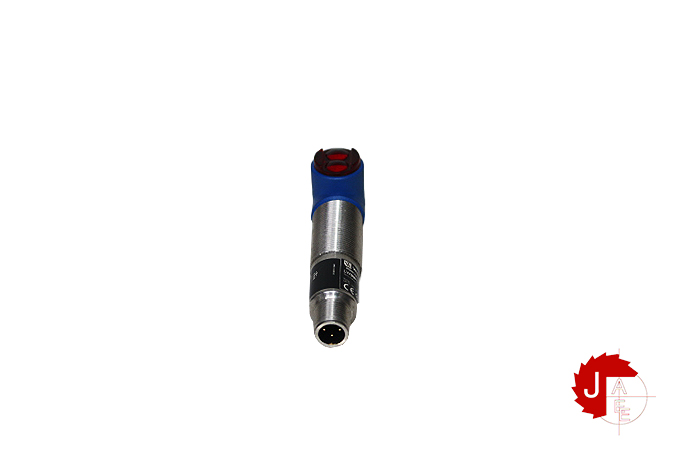

Wenglor LW86PCV3 Retro-Reflex Sensor Universal

Manufacturer: Wenglor
Type: Retro-Reflex Sensor Universal
Model: LW86PCV3

Range 6,000 mm
Reference Reflector/Reflector Foil RQ100BA
Switching Hysteresis < 15 %
Light Source Red Light
Polarization Filter yes
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 5 °
Two-Lens Optic yes
Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1 kHz
Response Time 500 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
