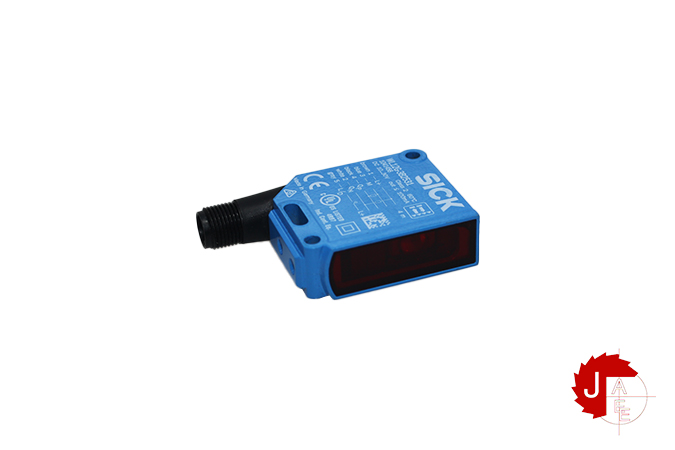

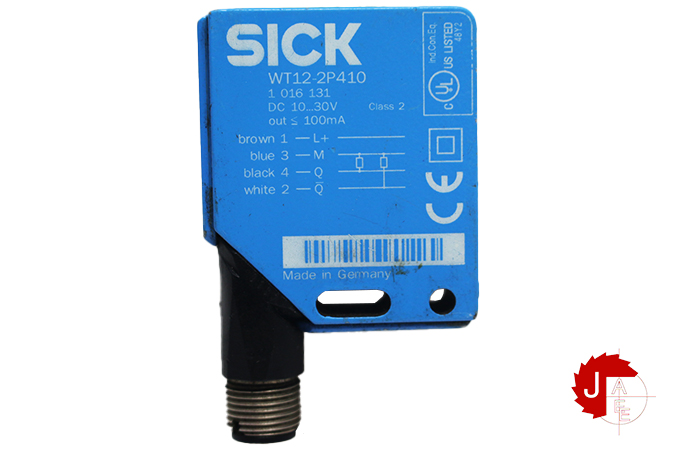

SICK WT12-2P410 Photoelectric proximity sensor 1016131

Manufacturer: SICK
Type: Photoelectric proximity sensor
Model:WT12-2P410
Part No: 1016134

Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm
Housing design (light emission) Rectangular
Sensing range max. 20 mm … 250 mm
Sensing range 20 mm … 250 mm
Type of light Visible red light
Light source LED
Adjustment Potentiometer

Supply voltage 10 V DC … 30 V DC
Ripple ≤ 5 Vpp
Power consumption 30 mA
Switching output PNP
Switching mode Light/dark switching
