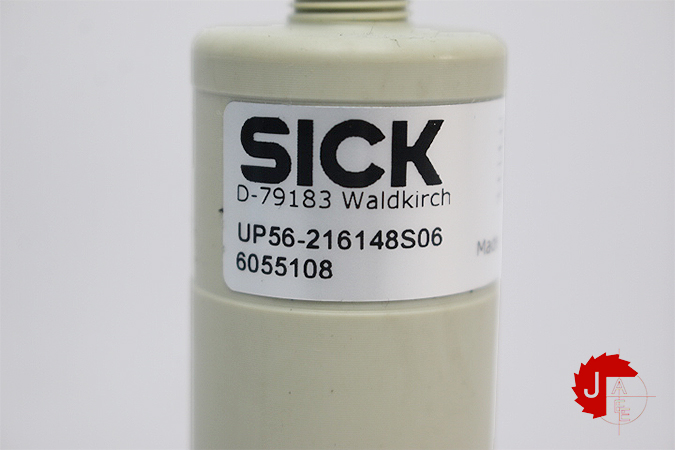

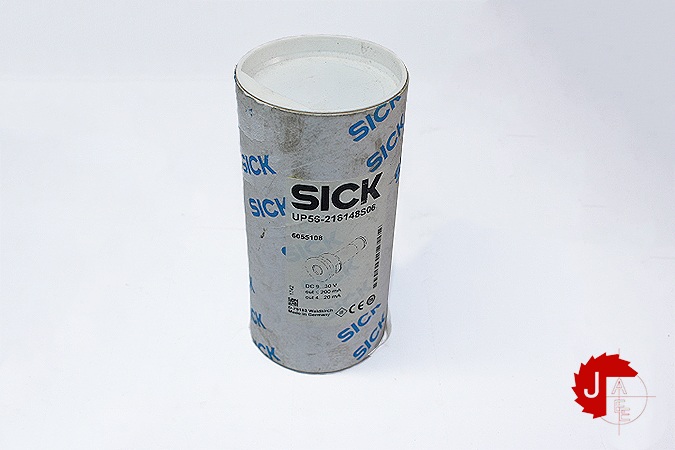

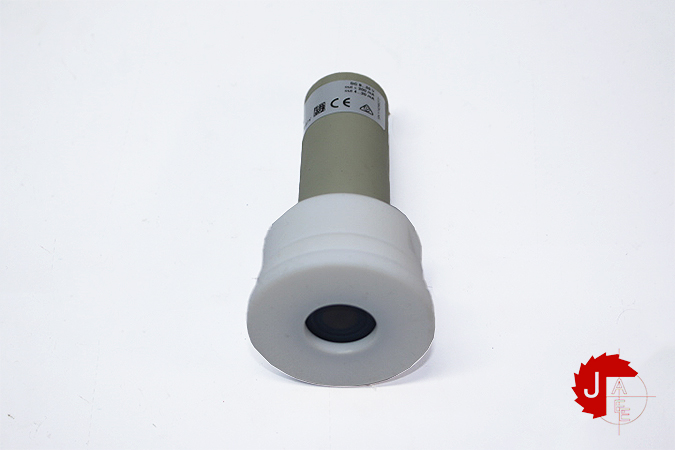

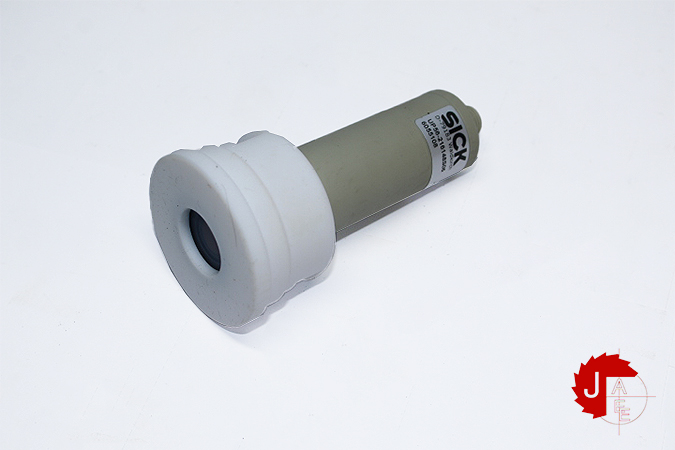

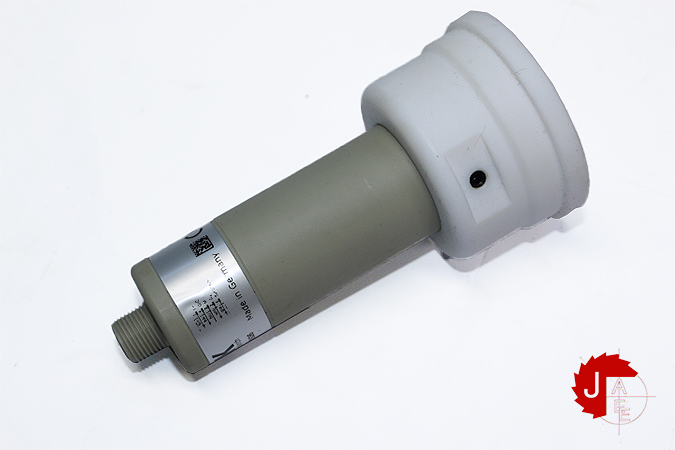

SICK UP56-216148S06 Level sensors 6055108

Manufacturer: SICK
Type: Level sensors
Model: UP56-216148S06
Part No: 6055108

Medium Fluids
Measurement Switch, Continuous
Measuring range in tank 65 mm … 700 mm
Measuring range immersion tube 65 mm … 1,500 mm
Process pressure 0 bar … 6 bar
Process temperature –25 °C … +85 °C

Accuracy of sensor element ≤ 1 %
Reproducibility ± 0.15 %
Resolution ≤ 0.18 mm
Response time ≤ 84 ms
MTTF > 100 years

Supply voltage 9 V DC … 30 V DC
Residual ripple ± 10 %
Power consumption ≤ 80 mA
Protection class III
Connection type Round connector M12 x 1, 5-pin
Output signal 1 x PNP + 4 mA … 20 mA / 0 V … 10 V
Hysteresis 5 mm
Output current 200 mA
Time delay before availability ≤ 300 ms
Enclosure rating IP67
Ultrasonic frequency 200 kHz
