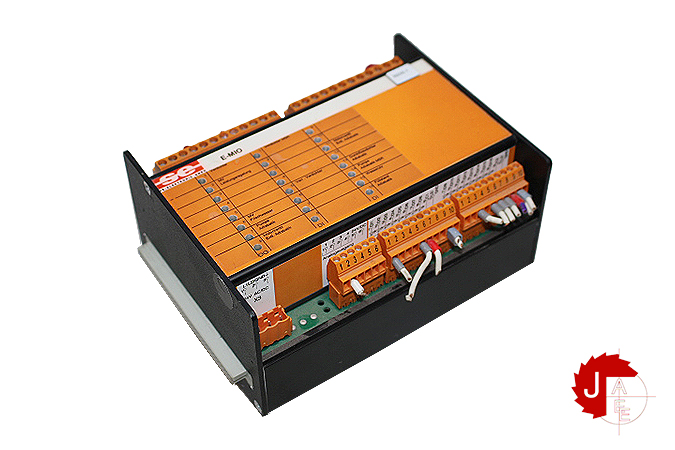

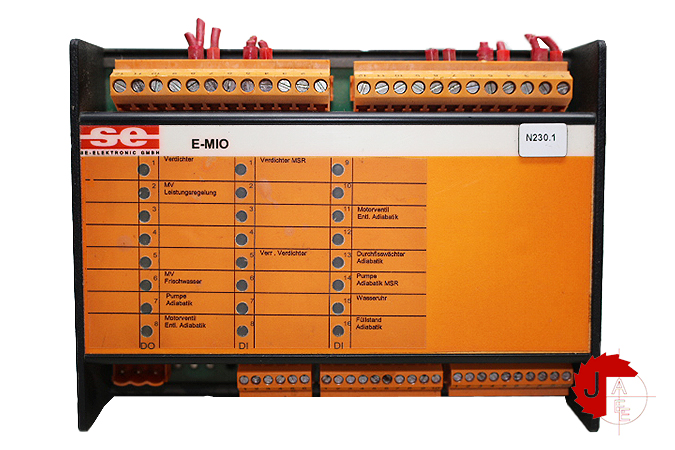

SE Electronic E-MIO Module with digital and analog inputs and outputs G 02 91 00

Manufacturer: SE Electronic
Type: Module with digital and analog inputs and outputs
Model: E-MIO
Part No: G 02 91 00

16× digital inputs AC/DC 8…24 V, DC 12…30 V, floating or floating – can be used as a counter input up to 25 Hz – each input has a freely programmable two-color (green/red) LED display • 8× digital outputs – relay outputs with changeover contacts , switching capacity 230 V, 5 A, AC1 (resistive load) -integrated voltage failure bridging -LED status display • 4× analog outputs DC 0 …10 V, max. 10 mA per output, resolution 10 bit • 1× internal fast I/O- Bus for direct docking to an E-DDC3.x, max. 16 E-MIO devices
