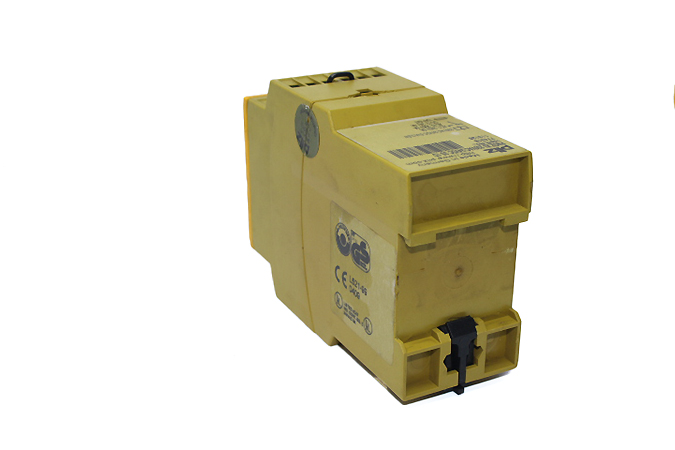

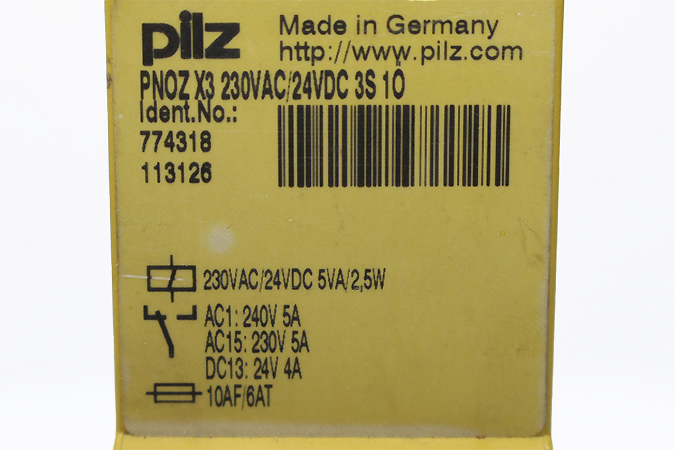

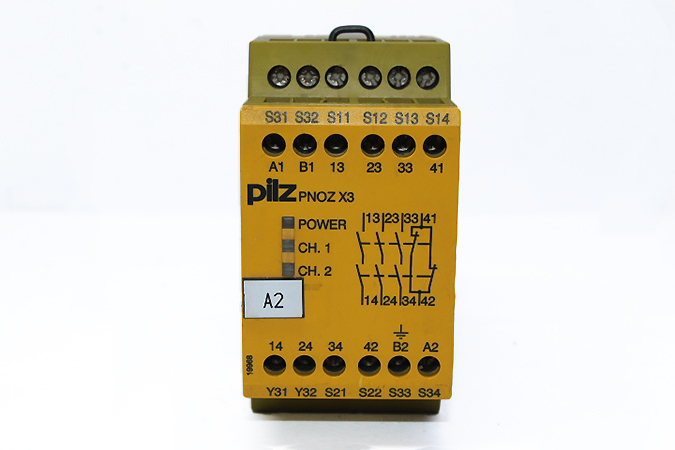

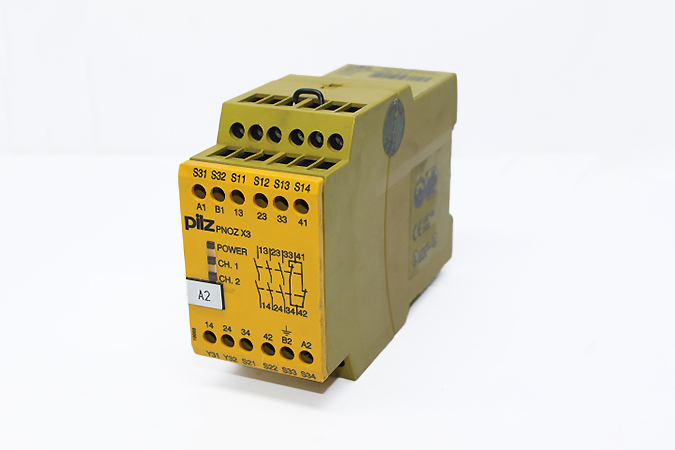

Manufacturer: Pilz
Model: PNOZ X3 230VAC/24VDC 3S 1O
Type: Safety Relay
Part No.: 774318
Supply voltage (V): 230 V
Type of supply voltage U1: AC
Power consumption AC: 5 VA
Supply voltage 2: 24 V
Type of supply voltage U2: DC
Number of inputs: 2
Number of semicond. outputs: 1
Tolerance ext. volt. DC S/C: -20 %/+20 %
Voltage AC1 safety cont.: 240 V
Max. current AC1 safety cont.: 8 A
Voltage DC1 safety cont.: 24 V
Max. current DC1 safety cont.: 8 A
Voltage AC15 safety cont.: 230 V
Max. current AC15 safety cont.: 5 A
Voltage DC13 safety cont.: 24 V
Connection terminal: Screw terminal
Terminal style: fixed
Ambient temperature: -20 – 55 °C
