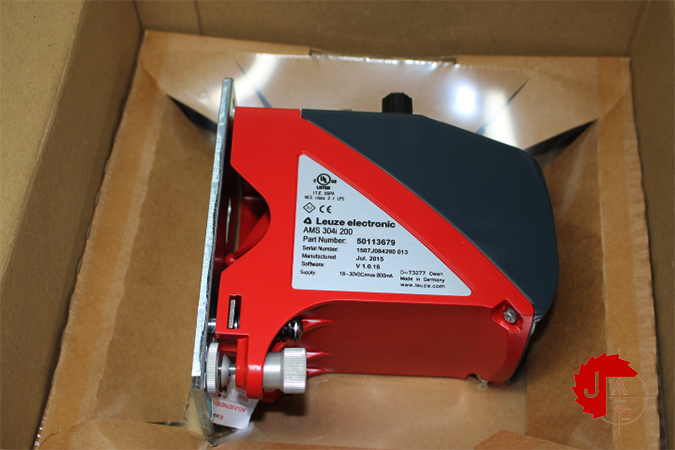

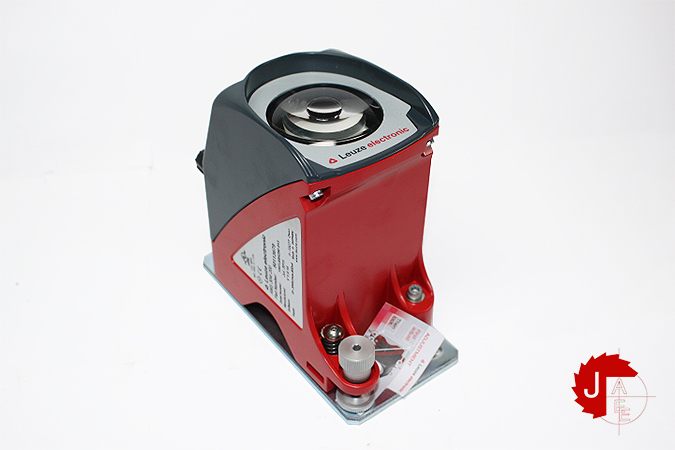

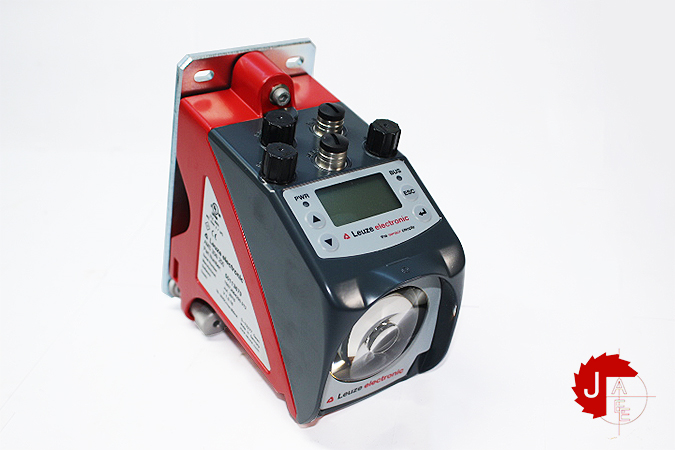

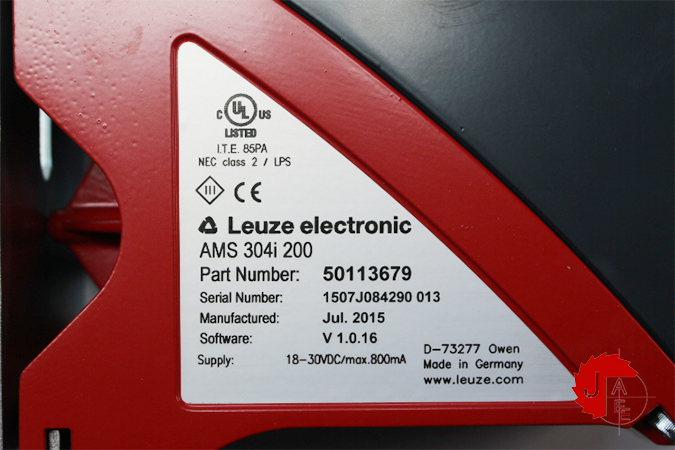

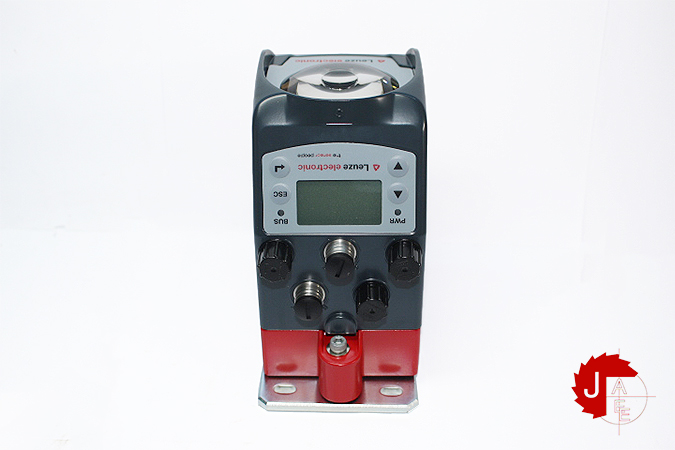

Leuze AMS 304i 200 Optical distance sensor 50113679

Manufacturer: Leuze
Type: Optical distance sensor
Model: AMS 304i 200
Part No: 50113679

Series AMS 300i
Application
Collision protection of cranes / gantry cranes
Positioning of electroplating plants
Positioning of skillet systems and side-tracking skates
Positioning of stacker cranes
Order guide Reflective tape must be ordered separately

Light source Laser, Red
Laser class 2, IEC/EN 60825-1:2014
Light spot size [at sensor distance] 150 mm [200,000 mm]

Measurement value calculation time 8 ms
Measurement range 200 … 200,000 mm
Resolution 0.001 … 10 mm
Accuracy 3 mm

Supply voltage UB 18 … 30 V, DC
