| Product characteristics | |||||
|---|---|---|---|---|---|
| Output function | normally open | ||||
| Sensing range [mm] | 20 | ||||
| Housing | cylindrical | ||||
| Dimensions [mm] | Ø 34 / L = 82 | ||||
| Electrical data | |||||
| Operating voltage [V] | 20…250 AC/DC | ||||
| Protection class | II | ||||
| Reverse polarity protection | no | ||||
| Outputs | |||||
| Output function | normally open | ||||
| Max. voltage drop switching output DC [V] | 6 | ||||
| Max. voltage drop switching output AC [V] | 6.5 | ||||
| Minimum load current [mA] | 5 | ||||
| Max. leakage current [mA] | 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) | ||||
| Permanent current rating of switching output AC [mA] | 250; (350 (…50 °C)) | ||||
| Permanent current rating of switching output DC [mA] | 100 | ||||
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) | ||||
| Switching frequency AC [Hz] | 25 | ||||
| Switching frequency DC [Hz] | 50 | ||||
| Short-circuit proof | no | ||||
| Overload protection | no | ||||
| Detection zone | |||||
| Sensing range [mm] | 20 | ||||
| Real sensing range Sr [mm] | 20 ± 10 % | ||||
| Operating distance [mm] | 0…16.2 | ||||
| Accuracy / deviations | |||||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3 | ||||
| Hysteresis [% of Sr] | 1…15 | ||||
| Switch point drift [% of Sr] | -10…10 | ||||
| Operating conditions | |||||
| Ambient temperature [°C] | -25…80 | ||||
| Protection | IP 67 | ||||
| Tests / approvals | |||||
| EMC |
|
||||
| MTTF [years] | 610 | ||||
| Mechanical data | |||||
| Weight [g] | 783.2 | ||||
| Housing | cylindrical | ||||
| Mounting | non-flush mountable | ||||
| Dimensions [mm] | Ø 34 / L = 82 | ||||
| Materials | PBT | ||||
| Displays / operating elements | |||||
| Display |
|
||||
| Electrical connection | |||||
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting | ||||
| Accessories | |||||
| Items supplied |
|
||||
| Remarks | |||||
| Remarks |
|
||||
| Notes | customer-specific | ||||
| Pack quantity | 1 pcs. | ||||
| Electrical connection | |||||
| Connection | Cable: 15 m, PVC; 2 x 0.5 mm² | ||||

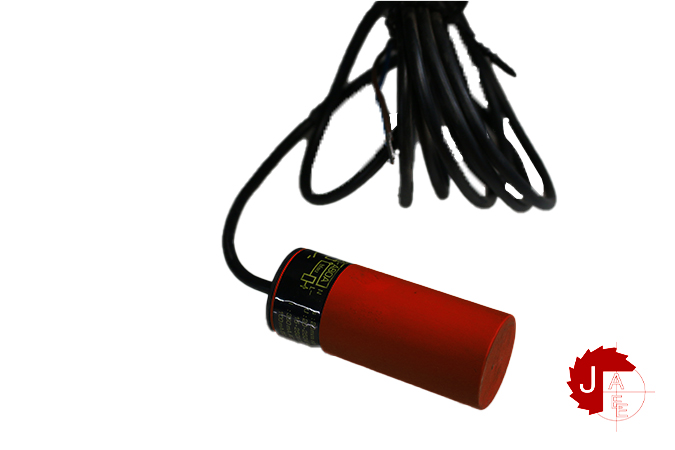

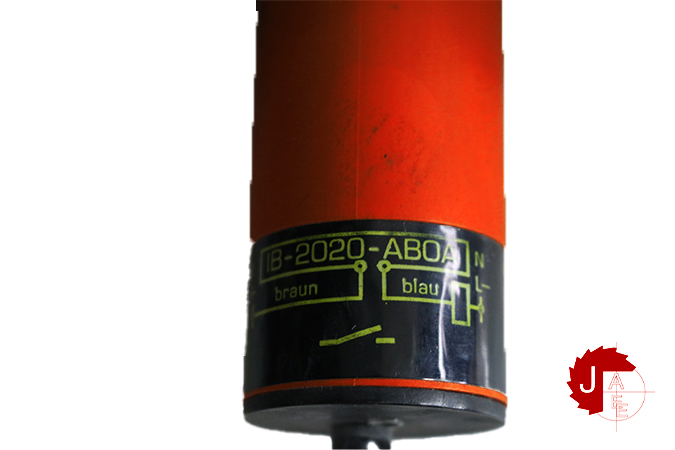

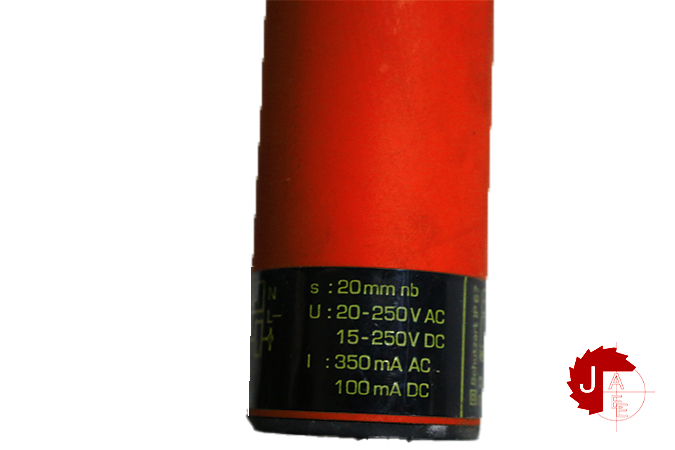

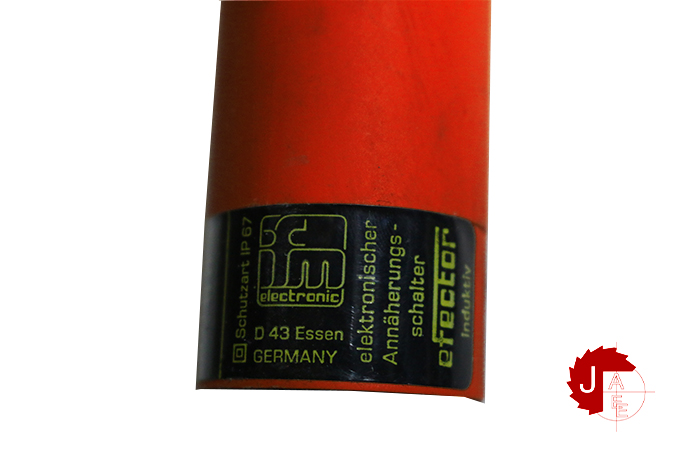

| Model | IFM BI-2020-ABOA |
|---|---|
| Condition | New |
