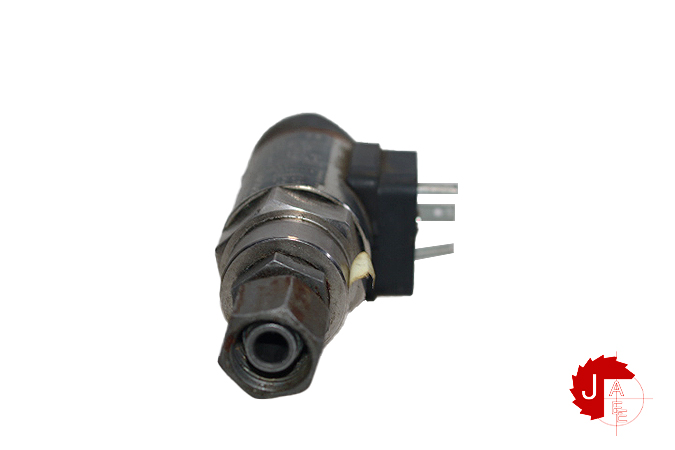

Manufacturer: PILZ
Type: Pressure sensor with LED bar display
Model: PB5001
Type: Pressure sensor with LED bar display
Model: PB5001
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|---|
| Measuring range [bar] | 0…250 |
| Process connection | threaded connection G 1/4 Internal thread |
Application
| Application | for industrial applications |
|---|---|
| Media | liquids and gases |
| Conditionally suitable for | For gaseous media the application is limited to max. 25 bar. |
| Medium temperature [°C] | -25…80 |
| Min. bursting pressure [bar] | 850 |
| Pressure rating [bar] | 400 |
| Type of pressure | relative pressure |
Electrical data
| Operating voltage [V] | 18…30 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 0.2 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 10 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Manufacturer | IFM |
|---|---|
| Model | PB5001 Pressure sensor with LED bar display |
| Condition | Used |
