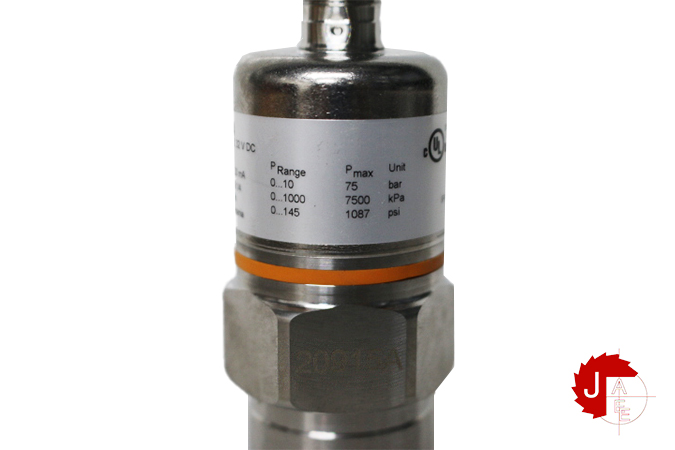

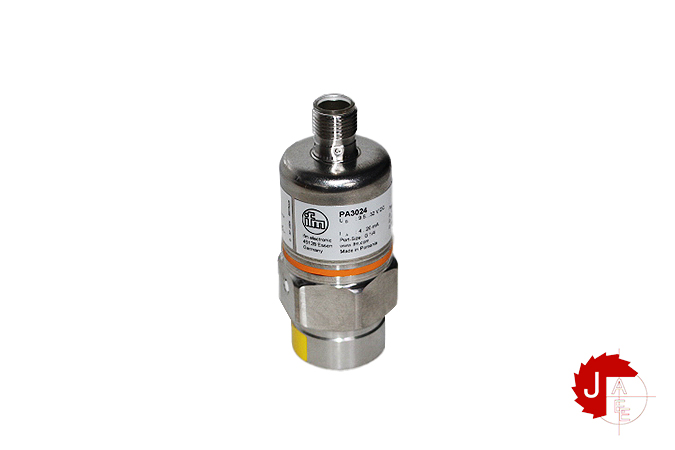

IFM PA3024 Pressure transmitter with ceramic measuring cell PA-010-RBR14-A-ZVG/US/ /V

Precise linear 4…20 mA output signal

Number of inputs and outputs Number of analogue outputs: 1
Measuring range 0…10 bar
Process connection threaded connection G 1/4 internal thread



SKU: 0997688 Category: Tags: , ,

Only 1 item left.

Manufacturer: IFM
Type: Pressure transmitter with ceramic measuring cell
Model: PA-010-RBR14-A-ZVG/US/ /V
Part No: PA3024

Precise linear 4…20 mA output signal
High repeatability and low linearity error
With long-term stability thanks to high overload protection
Robust stainless steel housing for use in harsh industrial environments
Wide operating temperature range

Number of inputs and outputs Number of analogue outputs: 1
Measuring range 0…10 bar
Process connection threaded connection G 1/4 internal thread

Special feature Gold-plated contacts
Application for industrial applications
Media liquids and gases
Medium temperature [°C] -25…90; (on request: -40…90 °C)
Min. bursting pressure 150 bar
Pressure rating 75 bar
1088 psi 7.5 Mpa
Type of pressure relative pressure

Operating voltage [V] 9.6…32 DC
Min. insulation resistance [MΩ] 100; (500 V DC)

Manufacturer IFM
Model PA3024 Pressure transmitter with ceramic measuring cell PA-010-RBR14-A-ZVG/US/ /V
Condition New
