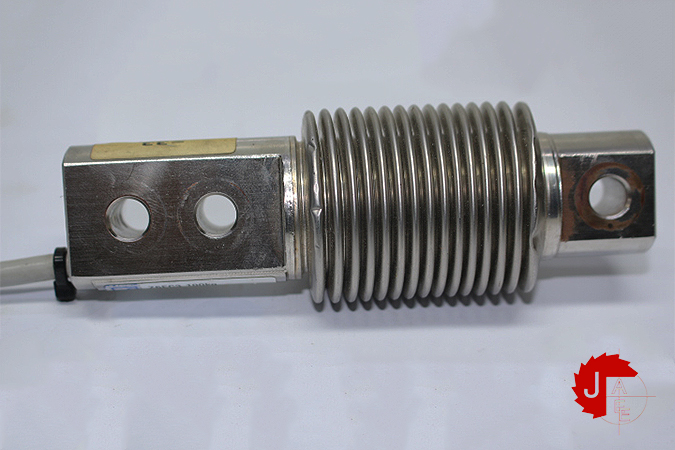

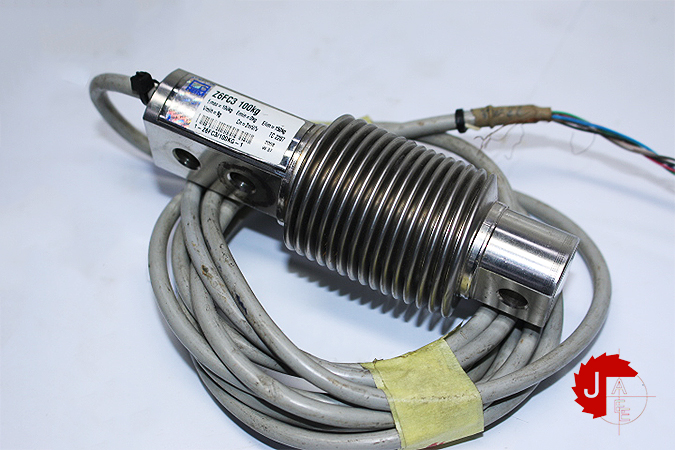

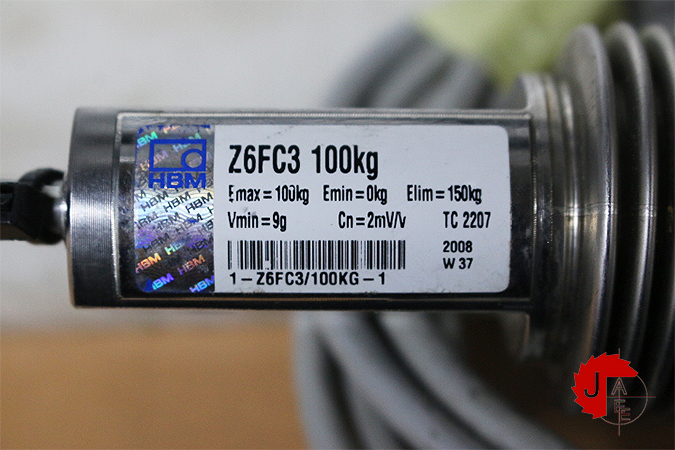

HBM Z6FC3-100 KG LOAD CELL

Manufacturer: HBM
Type: LOAD CELL
Model: Z6FC3-100 KG

Nominal load “kg”: 100
Accuracy class to OIML R 60: C3
Temperature coefficient of sensitivity (TCS): 0.0080
Input resistance (RLC) “Ohm’s”: 350…480
Output resistance (R0) “Ohm’s”: 356 +- 0.12
