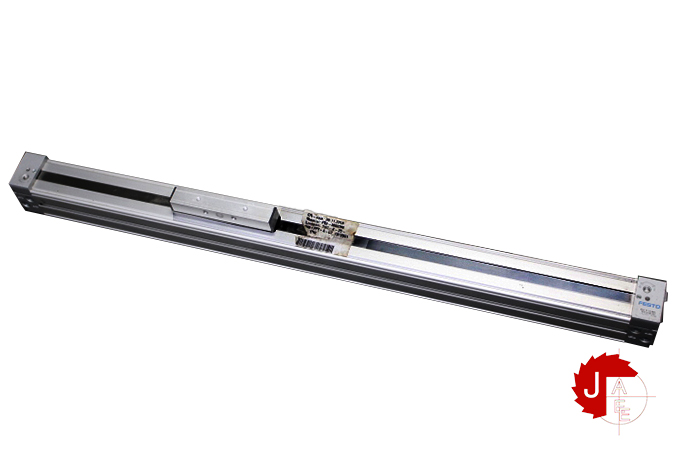

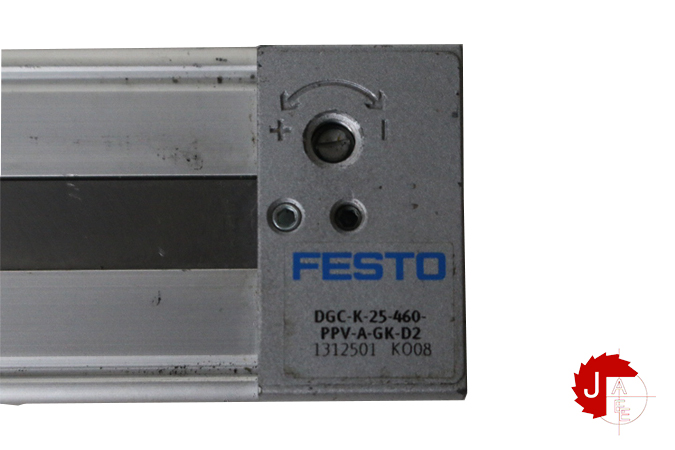

FESTO DGC-K-25-460-PPV-A-GK-D2 Linear drives 1312501

Manufacturer: FESTO
Type: Linear drives
Model: DGC-K-25-460-PPV-A-GK-D2
Part No: 1312501

Stroke 460 mm
Piston diameter 25 mm
Cushioning Pneumatic cushioning, adjustable at both ends

Mounting position Any
Position sensing For proximity sensor
Variants Supply port at both ends
Standard piston Extended piston
Operating pressure 0.2 MPa … 0.8 MPa
Operating pressure 2 bar … 8 bar

Cushioning length 18 mm
Theoretical force at 6 bar, retracting 295 N
Theoretical force at 6 bar, advancing 295 N
