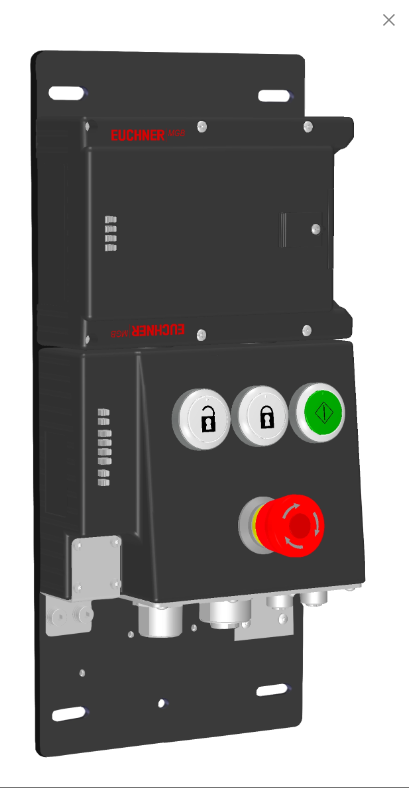

EUCHNER MGB-L1B-PNA-R-12733 Evaluation module and bus module

Manufacturer: EUCHNER
Type: Evaluation module and bus module
Model: MGB-L1B-PNA-R-12733

Guard locking with guard lock monitoring
Emergency stop according to ISO 13850, illuminated
3 illuminated pushbuttons with symbol
Connection via 7/8″ and M12 plugs
Pre-assembled on mounting plates
Integrated Profinet RT switch
Unicode

Electrical connection values
Connecting cable
Ethernet Profinet I/O cable, at least cat. 5e
Rated insulation voltage Ui 75 V
Rated impulse withstand voltage Uimp 0.5 kV
EMC protection requirements In accordance with EN 61000-4 and EN 61326-3-1
maximum feed-in current in the connection block
X1, X2 max. 4000 mA
Safety class III
Current consumption max. 500 mA
Transponder coding Unicode
Degree of contamination (external, according to EN 60947-1) 3

Power supply X1
Fuse
external min. 1 A slow blow
Operating voltage DC
L1 24 V DC -15% … +10%
Auxiliary voltage DC
L2 24 V DC -15% … +10%
Power supply X2
Operating voltage DC
L1 24 V DC -15% … +10%
Auxiliary voltage DC
L2 24 V DC -15% … +10%
