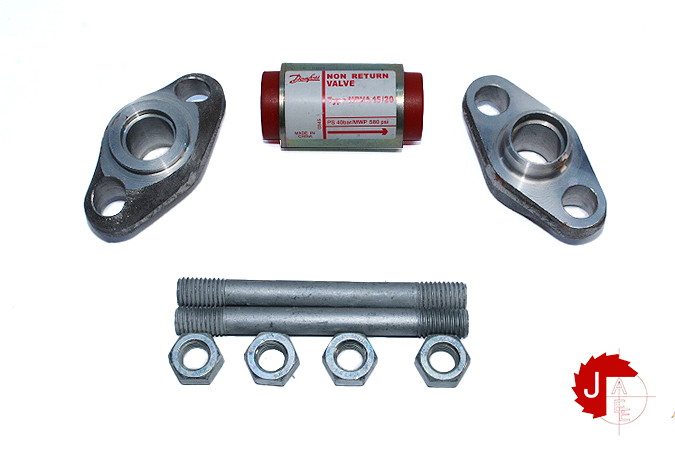

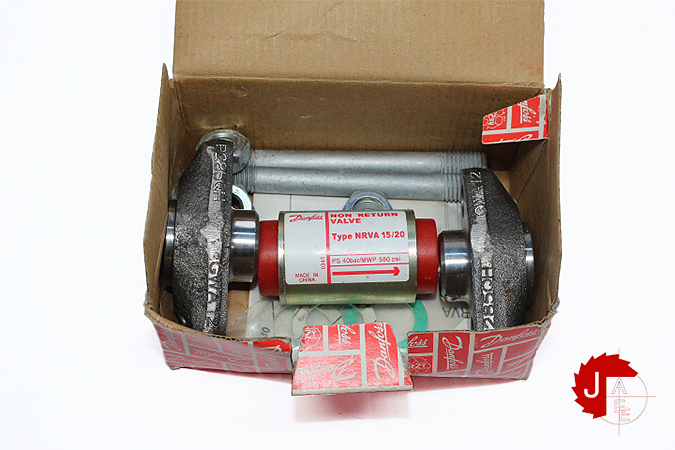

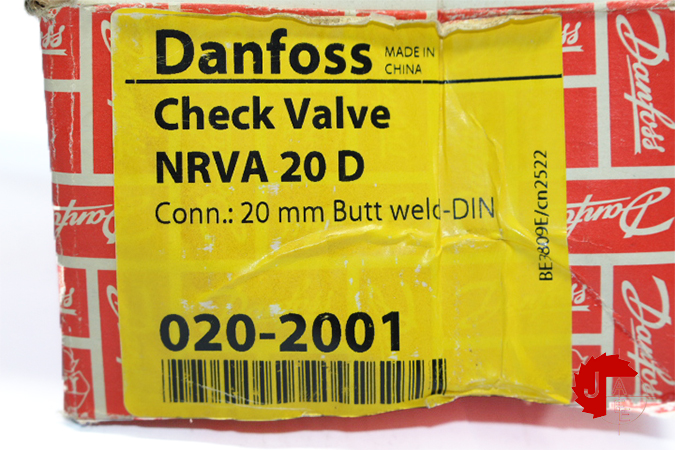

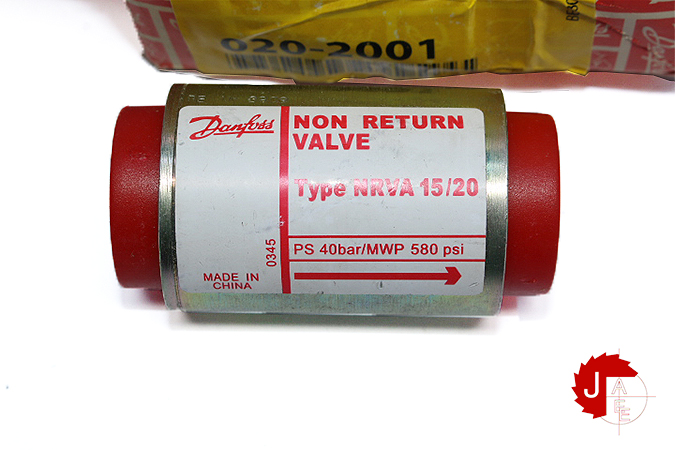

Danfoss NRVA 20D Check valve 020-2001

Manufacturer: Danfoss
Type: Check valve
Model: NRVA 20D
Part No: 020-2001

Connection standard: EN 10220, Connection type: Butt weld, Connection size [mm]: 20, Max. Working Pressure [bar]: 40.0

Connection size [in] 3/4 in
Connection size [mm] 20 mm
Connection standard EN 10220
Connection type Butt weld
Cv value [gal/min] 7 gal/min
EU RoHS compliance Out of scope
Fluid Group 1
In scope of WEEE and contain batteries No
Kv value [m³/h] 6 m³/h
Max. Working Pressure [bar] 40 bar
