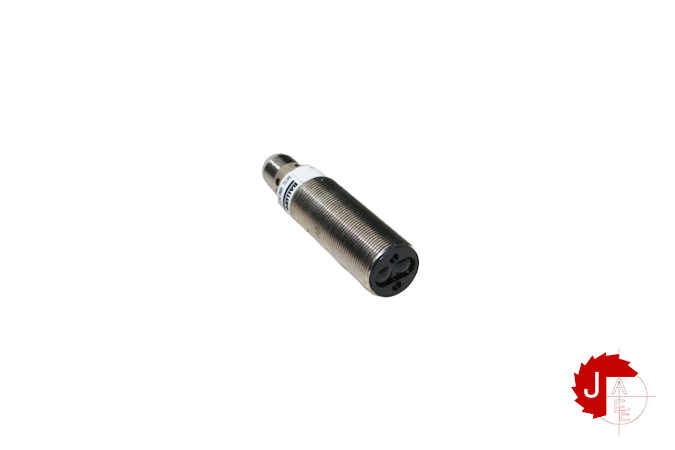

BALLUFF BOS 18M-PO-1RD-E5-C-S4 Diffuse sensors BOS001Y

Manufacturer: BALLUFF
Type: Diffuse sensors
Model: BOS 18M-PO-1RD-E5-C-S4
Part No: BOS001Y

Series 18M
Dimension Ø 18 x 68.5 mm
Interface PNP normally closed (NC)
Principle of operation Photoelectric sensor
Principle of optical operation Diffuse sensor, energetic
Beam characteristic Divergent
Light type Infrared
Range 0…200 mm
Connection Connector, M12x1-Male, 4-pin
Housing material Brass, nickel plated
Material sensing surface PMMA
Operating voltage Ub 10…30 VDC
