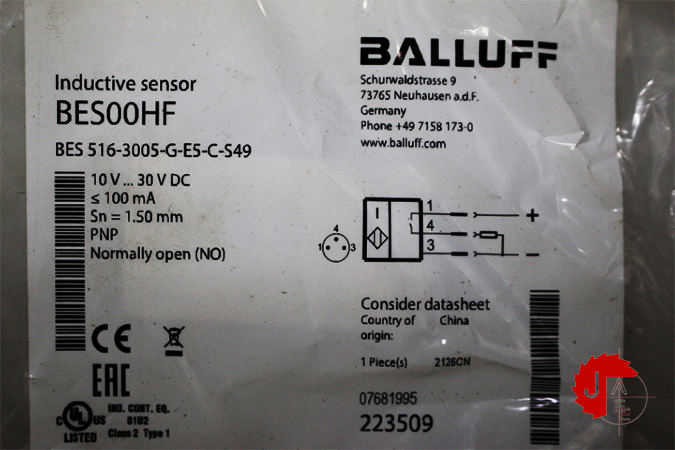

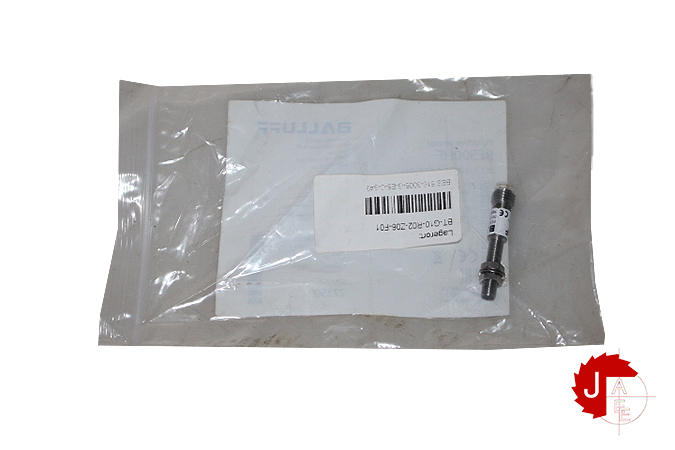

BALLUFF BES00HF Inductive standard sensors BES 516-3005-G-E5-C-S49

Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BES 516-3005-G-E5-C-S49
Part No: BES00HF

Dimension Ø 5 x 41 mm
Style Housing M5x0.5
Installation for flush mounting
Range 1.5 mm
Switching output PNP normally open (NO)
Switching frequency 5000 Hz
Housing material Stainless steel
Material sensing surface PBT
Connection Connector, M8x1-Male, 3-pin
Operating voltage Ub 10…30 VDC
Ambient temperature -25…70 °C
IP rating IP67
