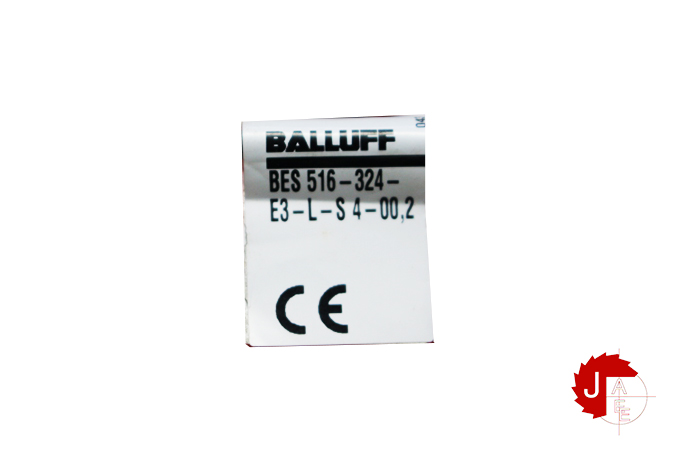

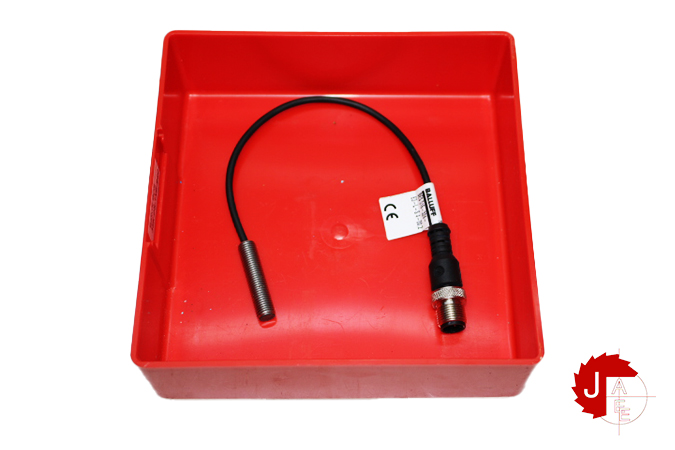

BALLUFF BES 516-324-E3-L-S4-00.2 Inductive standard sensors

Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BES 516-324-E3-L-S4-00.2

Dimension Ø 8 x 35 mm
Style Housing M8x1
Installation for flush mounting
Range 1.5 mm
Switching output PNP normally open (NO)
Switching frequency 5000 Hz
Housing material Stainless steel
Material sensing surface PBT
Connection Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR
Operating voltage Ub 10…30 VDC
Ambient temperature -40…85 °C
IP rating IP68
